* slike so simbolične

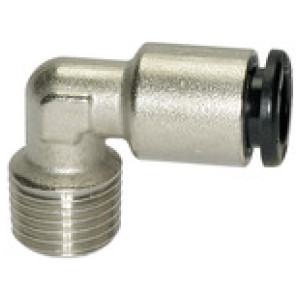

Vtični-L fiting Click-klak, R 1/4 i zun. premera 10
SKU: 108629RIE
EAN: 4047322209281
Push-in L-fitting »click-clock«, R 1/4 o., for hose exterior Ø 10 mm, Working pressure -0.99 to 16 bar, nickel-plated brass
The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.
Advantages of this new, optimised series:
- Much easier connection and disconnection of the hose, even with repeated mounting
- Can also be used for non-calibrated hoses
- Suitable for vacuum operation
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Vtični-L fiting Click-klak, R 1/4 i zun. premera 10
Min. delovni tlak [bar]: -0.99
Material: Nickel-plated brass
Navoj: R 1/4
Priporočena cev: PA, PU
Rokav: Hostaform
Serija: click-clock
Vpenjalni obroč: Stainless steel
Material: Nickel-plated brass
Navoj: R 1/4
Priporočena cev: PA, PU
Rokav: Hostaform
Serija: click-clock
Vpenjalni obroč: Stainless steel

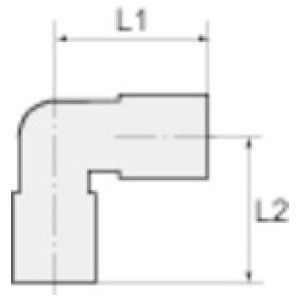

| Šifra | Navoj | Za cevi O.D. [mm] | a/f [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 108625RIE | R 1/8 | 6 | 10 | 16.0 | 21.9 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 108626RIE | R 1/8 | 8 | 10 | 16.0 | 25.4 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 108624RIE | R 1/8 | 4 | 10 | 16.0 | 18.6 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 108627RIE | R 1/4 | 6 | 10 | 18.5 | 21.9 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 108628RIE | R 1/4 | 8 | 10 | 18.5 | 25.4 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 108629RIE | R 1/4 | 10 | 14 | 22.0 | 27.2 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Push-in L-fitting »click-clock«, R 1/4 o., for hose exterior Ø 10 mm, Working pressure -0.99 to 16 bar, nickel-plated brass
The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.
Advantages of this new, optimised series:
- Much easier connection and disconnection of the hose, even with repeated mounting
- Can also be used for non-calibrated hoses
- Suitable for vacuum operation
Tehnični podatki in specifikacije
| Serija | click-clock |
| Min. delovni tlak [bar] | -0.99 |
| Max. delovni tlak [bar] | 16 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 80 |
| Priporočena cev | PA, PU |
| Rokav | Hostaform |
| Vpenjalni obroč | Stainless steel |
| Navoj | R 1/4 |
| Za cevi O.D. [mm] | 10 |
| L1 [mm] | 27.2 |
| L2 [mm] | 22.0 |
| a/f [mm] | 14 |
| Material | Nickel-plated brass |
