* slike so simbolične

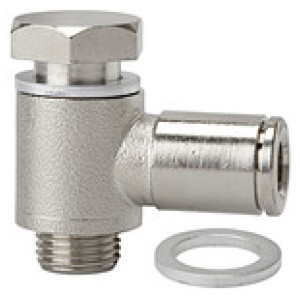

Vtični L nast. prik. Metallica, G 1/4 , zun. Ø 8
SKU: 108957RIE
EAN: 4047322279826
Push-in L-fitting »metallica«, G 1/4 o., for hose exterior Ø 8 mm, Working pressure -0.98 to 16 bar, nickel-plated brass
"All parts with a parallel thread are supplied with an FPM O-ring while the conical threads are coated with preCOTE 5 dispersion
Čas dobave: Predvidoma 3 - 5 dni
8,53 €
| Šifra | Navoj | Za cevi O.D. [mm] | a/f [mm] | L1 [mm] | L2 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 108962RIE | G 1/2 | 12 | 24 | 34.5 | 42.0 | Čas dobave: Predvidoma 3 - 5 dni | 20,17 € |  | |
| 108953RIE | G 1/8 | 4 | 14 | 20.5 | 28.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,14 € | | |
| 108959RIE | G 3/8 | 8 | 19 | 27.0 | 36.0 | Čas dobave: Predvidoma 3 - 5 dni | 13,32 € | | |
| 108961RIE | G 3/8 | 12 | 19 | 29.0 | 36.0 | Čas dobave: Predvidoma 3 - 5 dni | 16,36 € | | |
| 108951RIE | M5 | 5 | 8 | 19.0 | 17.5 | Čas dobave: Predvidoma 3 - 5 dni | 6,55 € | | |
| 108960RIE | G 3/8 | 10 | 19 | 28.0 | 36.0 | Čas dobave: Predvidoma 3 - 5 dni | 14,25 € | | |
| 108950RIE | M5 | 4 | 8 | 18.0 | 17.5 | Čas dobave: Predvidoma 3 - 5 dni | 6,42 € | | |
| 108958RIE | G 1/4 | 10 | 17 | 27.0 | 33.0 | Čas dobave: Predvidoma 3 - 5 dni | 9,35 € | | |
| 108956RIE | G 1/4 | 6 | 17 | 24.0 | 33.0 | Čas dobave: Predvidoma 3 - 5 dni | 8,49 € | | |
| 108954RIE | G 1/8 | 6 | 14 | 23.0 | 28.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,14 € | | |
| 108955RIE | G 1/8 | 8 | 14 | 24.5 | 28.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,22 € | | |
| 108952RIE | M5 | 6 | 8 | 19.5 | 19.5 | Čas dobave: Predvidoma 3 - 5 dni | 6,88 € | | |
| 108957RIE | G 1/4 | 8 | 17 | 26.0 | 33.0 | Čas dobave: Predvidoma 3 - 5 dni | 8,53 € | |
Opis
Push-in L-fitting »metallica«, G 1/4 o., for hose exterior Ø 8 mm, Working pressure -0.98 to 16 bar, nickel-plated brass
"All parts with a parallel thread are supplied with an FPM O-ring while the conical threads are coated with preCOTE 5 dispersion
Tehnični podatki in specifikacije
| Serija | metallica |
| Min. delovni tlak [bar] | -0.98 |
| Max. delovni tlak [bar] | 16 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 150 |
| Priporočena cev | PA and PU |
| Rokav | Nickel-plated brass |
| Vpenjalni obroč | Banjo elbows with outer hex |
| Navoj | G 1/4 |
| Za cevi O.D. [mm] | 8 |
| L1 [mm] | 26.0 |
| L2 [mm] | 33.0 |
| a/f [mm] | 17 |
| Material | Nickel-plated brass |
