* slike so simbolične

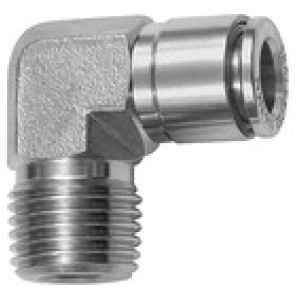

Vtični L nast. prilegajoče R 1/8 zunanja Ø 6, es 1,4404
SKU: 135157RIE
EAN: 4047322493659
Push-in L-fitting, R 1/8 o., for hose exterior Ø 6 mm, Working pressure -0.98 - 20 bar, Stainless steel 1.4404
For use in more aggressive environments and corrosive media.
The suitability test for the individual application is the user's responsibility.
Čas dobave 3 - 5 dni
32,73 €
| Šifra | Navoj | Za cevi O.D. [mm] | a/f [mm] | L1 [mm] | L2 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 135169RIE | R 1/2 | 12 | 21 | 27.7 | 29.5 | Čas dobave 3 - 5 dni | 105,70 € |  | |
| 135163RIE | R 1/4 | 12 | 19 | 26.7 | 24.5 | Čas dobave 3 - 5 dni | 92,52 € | | |
| 135171RIE | R 1/2 | 16 | 24 | 30.2 | 31.5 | Čas dobave 3 - 5 dni | 128,43 € | | |
| 135158RIE | R 1/8 | 8 | 14 | 23.2 | 18.2 | Čas dobave 3 - 5 dni | 37,58 € | | |
| 135164RIE | R 3/8 | 8 | 16 | 24.3 | 23.3 | Čas dobave 3 - 5 dni | 62,34 € | | |
| 135168RIE | R 1/2 | 10 | 21 | 26.7 | 29.5 | Čas dobave 3 - 5 dni | 90,55 € | | |
| 135160RIE | R 1/4 | 6 | 14 | 23.2 | 22.0 | Čas dobave 3 - 5 dni | 35,32 € | | |
| 135166RIE | R 3/8 | 12 | 19 | 26.7 | 25.0 | Čas dobave 3 - 5 dni | 103,60 € | | |
| 135170RIE | R 1/2 | 14 | 21 | 28.0 | 29.5 | Čas dobave 3 - 5 dni | 122,13 € | | |
| 135156RIE | R 1/8 | 4 | 10 | 20.3 | 16.0 | Čas dobave 3 - 5 dni | 32,73 € | | |
| 135167RIE | R 3/8 | 14 | 21 | 28.0 | 26.0 | Čas dobave 3 - 5 dni | 115,81 € | | |
| 135159RIE | R 1/4 | 4 | 14 | 22.6 | 21.7 | Čas dobave 3 - 5 dni | 43,15 € | | |
| 135157RIE | R 1/8 | 6 | 12 | 22.0 | 17.2 | Čas dobave 3 - 5 dni | 32,73 € | | |
| 135161RIE | R 1/4 | 8 | 14 | 23.2 | 21.7 | Čas dobave 3 - 5 dni | 42,75 € | | |
| 135162RIE | R 1/4 | 10 | 16 | 24.3 | 23.0 | Čas dobave 3 - 5 dni | 54,80 € | | |
| 135165RIE | R 3/8 | 10 | 16 | 24.3 | 23.0 | Čas dobave 3 - 5 dni | 76,64 € | |
Opis
Push-in L-fitting, R 1/8 o., for hose exterior Ø 6 mm, Working pressure -0.98 - 20 bar, Stainless steel 1.4404
For use in more aggressive environments and corrosive media.
The suitability test for the individual application is the user's responsibility.
Tehnični podatki in specifikacije
| Min. delovni tlak [bar] | -0.98 |
| Max. delovni tlak [bar] | 20 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 150 |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 150 |
| Primerni materiali za cevi | PVDF, PTFE, PA, PU |
| Navoj | R 1/8 |
| Za cevi O.D. [mm] | 6 |
| L1 [mm] | 22.0 |
| L2 [mm] | 17.2 |
| a/f [mm] | 12 |
| Standardni navoj | ISO 7-1 |
| Material | Stainless steel 1.4404 |
