Vtični ojačevalnik 24 V DC, za »posiflow«, G 1/4 in G 3/8
SKU: 101650RIE
EAN: 4047322163590

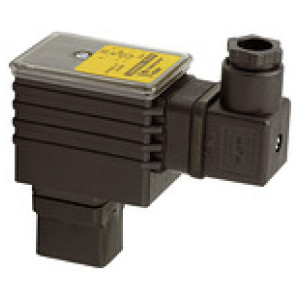

Plug amplifier 24 V DC, for proportional control valve »posiflow«, G 1/4 and G 3/8, Temperature range -10 °C to 75 °C
For converting the 0 to 10 V, 0 to 20 mA or 4 to 20 mA standard signal (settable) to an impressed current (0 to 1 A).
The impressed current is pulse width modulated to ensure low-hysteresis, thermally stable control.
With settable time ramp (ON/OFF, 0.1 to 3 s).
The minimum and maximum supply current for the solenoid can be set according to the control signals.
Obrestno financiranje
- 12,09 € x 48 mesecev
- 15,45 € x 36 mesecev
- 22,19 € x 24 mesecev
- 42,48 € x 12 mesecev
- 83,10 € x 6 mesecev
- 164,36 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Za tip | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 101650RIE | G 1/4, G 3/8 | Čas dobave: Predvidoma 3 - 5 dni | 453,93 € |  | |
| 101649RIE | G 1/8 | Čas dobave: Predvidoma 3 - 5 dni | 453,93 € | |
Opis
Plug amplifier 24 V DC, for proportional control valve »posiflow«, G 1/4 and G 3/8, Temperature range -10 °C to 75 °C
For converting the 0 to 10 V, 0 to 20 mA or 4 to 20 mA standard signal (settable) to an impressed current (0 to 1 A).
The impressed current is pulse width modulated to ensure low-hysteresis, thermally stable control.
With settable time ramp (ON/OFF, 0.1 to 3 s).
The minimum and maximum supply current for the solenoid can be set according to the control signals.
Tehnični podatki in specifikacije
| Ohišje | PA |
| Za tip | G 1/4, G 3/8 |
| Min. temperaturno območje [°C] | -10 |
| Max. temperaturno območje [°C] | 75 |
| Operativna napetost | 24 V DC |
