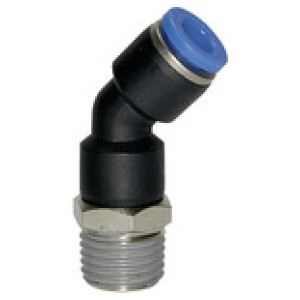

Vtični priključek 45° »blue serija«, vrtljivi, R 1/8 o.
SKU: 109244RIE
EAN: 4047322197359
Push-in fitting 45° »Blue Series«, rotating, R 1/8 o., for hose exterior Ø 8 mm, pmax short term 15 barPush-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Čas dobave: Predvidoma 3 - 5 dni
3,28 €

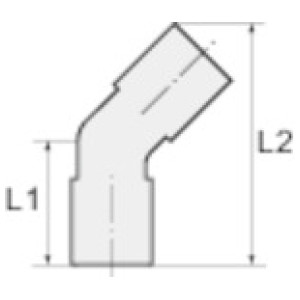

| Šifra | Navoj | Za cevi O.D. [mm] | a/f [mm] | L1 [mm] | L2 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 109252RIE | R 3/8 | 8 | 17 | 31.1 | 51.5 | Čas dobave: Predvidoma 3 - 5 dni | 4,58 € |  | |
| 109249RIE | R 1/4 | 10 | 17 | 32.2 | 55.6 | Čas dobave: Predvidoma 3 - 5 dni | 5,16 € | | |
| 109258RIE | R 1/2 | 12 | 21 | 39.2 | 65.9 | Čas dobave: Predvidoma 3 - 5 dni | 6,93 € | | |
| 109251RIE | R 3/8 | 6 | 17 | 28.4 | 46.0 | Čas dobave: Predvidoma 3 - 5 dni | 3,88 € | | |
| 109257RIE | R 1/2 | 10 | 21 | 36.7 | 60.1 | Čas dobave: Predvidoma 3 - 5 dni | 6,77 € | | |
| 109245RIE | R 1/8 | 10 | 17 | 30.2 | 53.6 | Čas dobave: Predvidoma 3 - 5 dni | 4,37 € | | |
| 109255RIE | R 1/2 | 6 | 21 | 31.9 | 49.5 | Čas dobave: Predvidoma 3 - 5 dni | 6,16 € | | |
| 109247RIE | R 1/4 | 6 | 14 | 26.9 | 44.5 | Čas dobave: Predvidoma 3 - 5 dni | 3,28 € | | |
| 109246RIE | R 1/4 | 4 | 14 | 25.7 | 41.5 | Čas dobave: Predvidoma 3 - 5 dni | 2,98 € | | |
| 109256RIE | R 1/2 | 8 | 21 | 34.6 | 55.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,55 € | | |
| 109250RIE | R 1/4 | 12 | 21 | 35.2 | 61.9 | Čas dobave: Predvidoma 3 - 5 dni | 6,77 € | | |
| 109243RIE | R 1/8 | 6 | 12 | 24.4 | 42.0 | Čas dobave: Predvidoma 3 - 5 dni | 2,67 € | | |
| 109248RIE | R 1/4 | 8 | 14 | 29.6 | 50.0 | Čas dobave: Predvidoma 3 - 5 dni | 3,28 € | | |
| 109242RIE | R 1/8 | 4 | 10 | 22.7 | 38.5 | Čas dobave: Predvidoma 3 - 5 dni | 2,21 € | | |
| 109254RIE | R 3/8 | 12 | 21 | 36.2 | 62.9 | Čas dobave: Predvidoma 3 - 5 dni | 6,77 € | | |
| 109253RIE | R 3/8 | 10 | 17 | 33.2 | 56.6 | Čas dobave: Predvidoma 3 - 5 dni | 5,16 € | | |
| 109244RIE | R 1/8 | 8 | 14 | 27.6 | 48.0 | Čas dobave: Predvidoma 3 - 5 dni | 3,28 € | |
Opis
Push-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Tehnični podatki in specifikacije
| Serija | Blue series |
| Max. working pressure short term [bar] | 15 |
| Min. delovni tlak [bar] | -0.95 |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 80 |
| Min. temperaturno območje [°C] | -20 |
| Tesnilo | NBR |
| Srednje | Compressed air, neutral and safe gases and liquids |
| Priporočena cev | PU or PA (nylon) |
| Rokav | Plastic |
| Navoj | R 1/8 |
| Za cevi O.D. [mm] | 8 |
| L1 [mm] | 27.6 |
| L2 [mm] | 48.0 |
| a/f [mm] | 14 |
| Material | Plastic and nickel-plated brass |
