Vtični T-konekt., Blue serija", cev / trn Ø 10
SKU: 135792RIE
EAN: 4047322499286

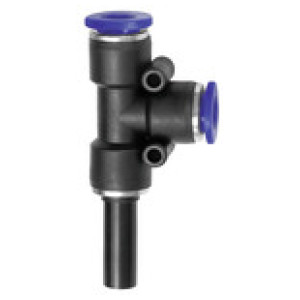

Push-in T-connector, Plug nipple »Blue Series«, for hose and plug exterior Ø 10 mm, pmax short term 15 bar, plasticPush-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Čas dobave: Predvidoma 3 - 5 dni
5,20 €

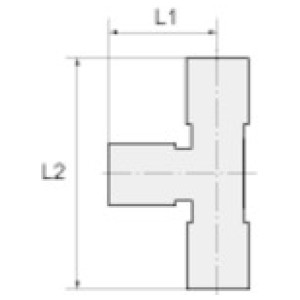

| Šifra | Priključek [mm] | Za cevi O.D. [mm] | L1 [mm] | L2 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 135791RIE | 8 | 8 | 21.7 | 61.4 | Čas dobave: Predvidoma 3 - 5 dni | 4,60 € |  | |
| 135794RIE | 16 | 16 | 32.0 | 86.5 | Čas dobave: Predvidoma 3 - 5 dni | 13,43 € | | |
| 135789RIE | 4 | 4 | 18.5 | 50.0 | Čas dobave: Predvidoma 3 - 5 dni | 3,96 € | | |
| 135793RIE | 12 | 12 | 28.0 | 77.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,49 € | | |
| 135790RIE | 6 | 6 | 19.0 | 54.0 | Čas dobave: Predvidoma 3 - 5 dni | 4,43 € | | |
| 135792RIE | 10 | 10 | 27.4 | 73.4 | Čas dobave: Predvidoma 3 - 5 dni | 5,20 € | |
Opis
Push-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Tehnični podatki in specifikacije
| Serija | Blue series |
| Max. working pressure short term [bar] | 15 |
| Min. delovni tlak [bar] | -0.95 |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 80 |
| Min. temperaturno območje [°C] | -20 |
| Tesnilo | NBR |
| Srednje | Compressed air, neutral and safe gases and liquids |
| Priporočena cev | PU or PA (nylon) |
| Rokav | Plastic |
| Za cevi O.D. [mm] | 10 |
| L1 [mm] | 27.4 |
| L2 [mm] | 73.4 |
| Priključek [mm] | 10 |
| Material | Plastic and nickel-plated brass |
