Vtični T-konekt., Blue serija", cev / trn Ø 8
SKU: 135778RIE
EAN: 4047322499149

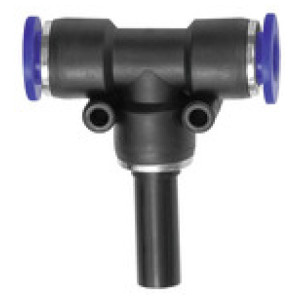

Push-in T-connector, Plug nipple »Blue Series«, for hose and plug exterior Ø 8 mm, pmax short term 15 bar, plasticPush-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Čas dobave: Predvidoma 3 - 5 dni
5,05 €

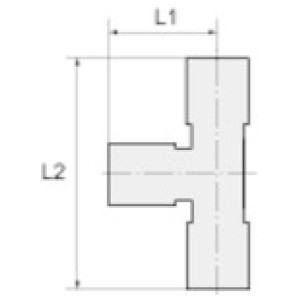

Šifra | Priključek [mm] | Za cevi O.D. [mm] | L1 [mm] | L2 [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|
135781RIE | 16 | 16 | 32.0 | 54.5 | Čas dobave: Predvidoma 3 - 5 dni | 16,14 € | | |
135780RIE | 12 | 12 | 28.0 | 50.0 | Čas dobave: Predvidoma 3 - 5 dni | 8,22 € | | |
135777RIE | 6 | 6 | 19.0 | 35.0 | Čas dobave: Predvidoma 3 - 5 dni | 4,43 € | | |
135779RIE | 10 | 10 | 27.4 | 46.5 | Čas dobave: Predvidoma 3 - 5 dni | 7,27 € | | |
135776RIE | 4 | 4 | 18.5 | 31.5 | Čas dobave: Predvidoma 3 - 5 dni | 3,96 € | | |
135778RIE | 8 | 8 | 21.7 | 40.0 | Čas dobave: Predvidoma 3 - 5 dni | 5,05 € | |
Opis
Push-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Tehnični podatki in specifikacije
Serija | Blue series |
Max. working pressure short term [bar] | 15 |
Min. delovni tlak [bar] | -0.95 |
Max. delovni tlak [bar] | 10 |
Max. temperaturno območje [°C] | 80 |
Min. temperaturno območje [°C] | -20 |
Tesnilo | NBR |
Srednje | Compressed air and all gases or liquids that are compatible |
Priporočena cev | PU or PA (nylon) |
Rokav | Plastic |
Za cevi O.D. [mm] | 8 |
L1 [mm] | 21.7 |
L2 [mm] | 40.0 |
Priključek [mm] | 8 |
Material | Plastic and nickel-plated brass |
