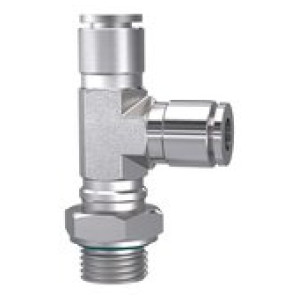

Vtični T prik. L-obliko rotirajočo G 1/2 zunanje Ø10
SKU: 135222RIE
EAN: 4047322494274
Push-in T-fitting, L-shape, rotating, G 1/2 o., for hose exterior Ø 10 mm, Working pressure -0.98 - 20 bar, 1.4404
For use in more aggressive environments and corrosive media.
The suitability test for the individual application is the user's responsibility.
Opis
Push-in T-fitting, L-shape, rotating, G 1/2 o., for hose exterior Ø 10 mm, Working pressure -0.98 - 20 bar, 1.4404
For use in more aggressive environments and corrosive media.
The suitability test for the individual application is the user's responsibility.
Tehnični podatki in specifikacije
Min. delovni tlak [bar] | -0.98 |
Max. delovni tlak [bar] | 20 |
Min. delovna temperatura [°C] | -20 |
Max. delovna temperatura [°C] | 150 |
Min. temperatura medija [°C] | -20 |
Max. temperatura medija [°C] | 150 |
Tesnilo | FPM |
Primerni materiali za cevi | PVDF, PTFE, PA, PU |
Navoj | G 1/2 |
Za cevi O.D. [mm] | 10 |
L1 [mm] | 24.3 |
L2 [mm] | 58.1 |
a/f [mm] | 27 |
Standardni navoj | DIN EN ISO 228-1 |
Material | Stainless steel 1.4404 |
