* slike so simbolične
Vtični T prik. Metallica vrt., G 1/8 , cev Ø 6
SKU: 108921RIE
EAN: 4047322279529

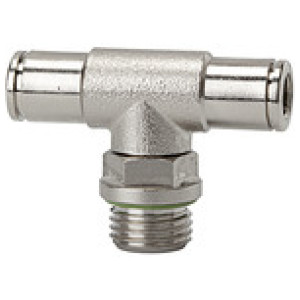

Push-in T-fitting »metallica«, rotating, G 1/8 o., for hose exterior Ø 6, Working pressure -0.98 to 16 bar, nickel-plated brass
"All parts with a parallel thread are supplied with an FPM O-ring while the conical threads are coated with preCOTE 5 dispersion
Čas dobave: Predvidoma 3 - 5 dni
7,75 €
| Šifra | Navoj | Za cevi O.D. [mm] | a/f [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 108920RIE | G 1/8 | 4 | 13 | 20.0 | 40.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,78 € |  | |
| 108922RIE | G 1/8 | 8 | 13 | 20.0 | 47.0 | Čas dobave: Predvidoma 3 - 5 dni | 8,10 € | | |
| 108925RIE | G 1/4 | 10 | 16 | 24.0 | 53.0 | Čas dobave: Predvidoma 3 - 5 dni | 11,08 € | | |
| 137013RIE | G 1/2 | 14 | 20 | 33.5 | 64.0 | Čas dobave: Predvidoma 3 - 5 dni | 16,98 € | | |
| 108929RIE | G 1/2 | 12 | 20 | 34.5 | 58.0 | Čas dobave: Predvidoma 3 - 5 dni | 15,79 € | | |
| 108923RIE | G 1/4 | 6 | 13 | 24.0 | 43.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,97 € | | |
| 137012RIE | G 3/8 | 14 | 20 | 28.5 | 64.0 | Čas dobave: Predvidoma 3 - 5 dni | 16,46 € | | |
| 108928RIE | G 3/8 | 12 | 20 | 34.5 | 58.0 | Čas dobave: Predvidoma 3 - 5 dni | 14,58 € | | |
| 108927RIE | G 3/8 | 10 | 16 | 28.0 | 53.0 | Čas dobave: Predvidoma 3 - 5 dni | 11,08 € | | |
| 108924RIE | G 1/4 | 8 | 13 | 24.0 | 47.0 | Čas dobave: Predvidoma 3 - 5 dni | 8,32 € | | |
| 108926RIE | G 3/8 | 8 | 13 | 25.5 | 47.0 | Čas dobave: Predvidoma 3 - 5 dni | 9,52 € | | |
| 108921RIE | G 1/8 | 6 | 13 | 20.0 | 43.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,75 € | |
Opis
Push-in T-fitting »metallica«, rotating, G 1/8 o., for hose exterior Ø 6, Working pressure -0.98 to 16 bar, nickel-plated brass
"All parts with a parallel thread are supplied with an FPM O-ring while the conical threads are coated with preCOTE 5 dispersion
Tehnični podatki in specifikacije
| Serija | metallica |
| Min. delovni tlak [bar] | -0.98 |
| Max. delovni tlak [bar] | 16 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 150 |
| Priporočena cev | PA and PU |
| Rokav | Nickel-plated brass |
| Vpenjalni obroč | Male branch tee, swivel type, parallel male thread with O-ring (FPM) |
| Navoj | G 1/8 |
| Za cevi O.D. [mm] | 6 |
| L1 [mm] | 43.0 |
| L2 [mm] | 20.0 |
| a/f [mm] | 13 |
| Material | Nickel-plated brass |
