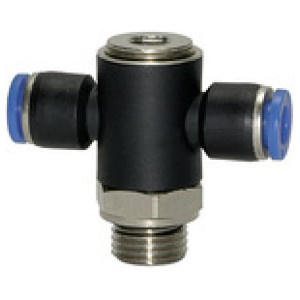

Vtični T priključek »blue serija«, vrtljivi, G 1/4 o.
SKU: 109567RIE
EAN: 4047322200219
Push-in T-fitting »Blue Series«, rotating, G 1/4 o., for hose exterior Ø 8 mm, pmax short term 15 barPush-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Čas dobave: Predvidoma 3 - 5 dni
8,20 €

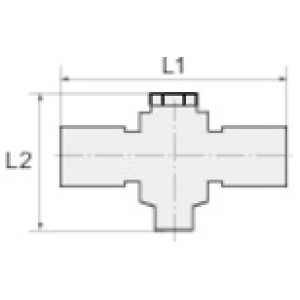

Šifra | Navoj | Šestkotna glava vtičnice [mm] | Za cevi O.D. [mm] | a/f [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|---|
109566RIE | G 1/4 | 6 | 6 | 17 | 37.5 | 46.7 | Čas dobave: Predvidoma 3 - 5 dni | 7,97 € | ||
109570RIE | G 3/8 | 8 | 8 | 20 | 39.2 | 56.3 | Čas dobave: Predvidoma 3 - 5 dni | 10,52 € | ||
109571RIE | G 3/8 | 8 | 10 | 20 | 39.2 | 63.5 | Čas dobave: Predvidoma 3 - 5 dni | 11,68 € | ||
109565RIE | G 1/8 | 4 | 8 | 14 | 28.5 | 48.5 | Čas dobave: Predvidoma 3 - 5 dni | 5,66 € | ||
109569RIE | G 1/4 | 6 | 12 | 17 | 37.5 | 60.7 | Čas dobave: Predvidoma 3 - 5 dni | 9,85 € | ||
109563RIE | G 1/8 | 4 | 4 | 14 | 28.5 | 45.0 | Čas dobave: Predvidoma 3 - 5 dni | 5,16 € | ||
109564RIE | G 1/8 | 4 | 6 | 14 | 28.5 | 42.6 | Čas dobave: Predvidoma 3 - 5 dni | 5,44 € | ||
109568RIE | G 1/4 | 6 | 10 | 17 | 37.5 | 59.6 | Čas dobave: Predvidoma 3 - 5 dni | 9,36 € | ||
109572RIE | G 3/8 | 8 | 12 | 20 | 39.2 | 64.9 | Čas dobave: Predvidoma 3 - 5 dni | 11,68 € | ||
109567RIE | G 1/4 | 6 | 8 | 17 | 37.5 | 52.5 | Čas dobave: Predvidoma 3 - 5 dni | 8,20 € |
Opis
Push-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Tehnični podatki in specifikacije
Serija | Blue series |
Max. working pressure short term [bar] | 15 |
Min. delovni tlak [bar] | -0.95 |
Max. delovni tlak [bar] | 10 |
Max. temperaturno območje [°C] | 80 |
Min. temperaturno območje [°C] | -20 |
Tesnilo | NBR |
Srednje | Compressed air, neutral and safe gases and liquids |
Priporočena cev | PU or PA (nylon) |
Rokav | Plastic |
Navoj | G 1/4 |
Za cevi O.D. [mm] | 8 |
L1 [mm] | 52.5 |
L2 [mm] | 37.5 |
a/f [mm] | 17 |
Šestkotna glava vtičnice [mm] | 6 |
Material | Plastic and nickel-plated brass |
