* slike so simbolične
VtičreducirniG 3/8 i.G 1/2 i.dolž. 24,poniklj. Med.
SKU: 111525RIE
EAN: 4047322054713

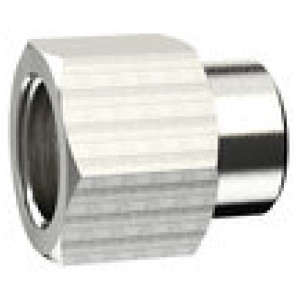

Socket, reduced, G 3/8 i., G 1/2 i., AF 24, nickel-plated brass, Max. working pressure 25 bar, Max. operating temperature 150 °C
Suitable for air, water, oil, steam, etc.
Čas dobave: Predvidoma 3 - 5 dni
3,75 €
| Šifra | Navoj 1 | Navoj 2 | L1 [mm] | a/f [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 111526RIE | G 1/2 | G 3/4 | 30.0 | 32 | Čas dobave: Predvidoma 3 - 5 dni | 5,98 € |  | |
| 111521RIE | G 1/8 | G 1/4 | 21.5 | 17 | Čas dobave: Predvidoma 3 - 5 dni | 1,67 € | | |
| 111528RIE | G 1 | G 3/4 | 25.0 | 38 | Čas dobave: Predvidoma 3 - 5 dni | 9,55 € | | |
| 111522RIE | G 1/8 | G 3/8 | 23.5 | 22 | Čas dobave: Predvidoma 3 - 5 dni | 2,56 € | | |
| 111520RIE | M5 | G 1/8 | 13.5 | 14 | Čas dobave: Predvidoma 3 - 5 dni | 1,43 € | | |
| 111527RIE | G 1/2 | G 1/8 | 24.0 | 24 | Čas dobave: Predvidoma 3 - 5 dni | 6,01 € | | |
| 111524RIE | G 1/4 | G 1/2 | 28.5 | 24 | Čas dobave: Predvidoma 3 - 5 dni | 3,67 € | | |
| 111525RIE | G 3/8 | G 1/2 | 29.5 | 24 | Čas dobave: Predvidoma 3 - 5 dni | 3,75 € | | |
| 111523RIE | G 1/4 | G 3/8 | 25.5 | 22 | Čas dobave: Predvidoma 3 - 5 dni | 2,78 € | |
Opis
Socket, reduced, G 3/8 i., G 1/2 i., AF 24, nickel-plated brass, Max. working pressure 25 bar, Max. operating temperature 150 °C
Suitable for air, water, oil, steam, etc.
Tehnični podatki in specifikacije
| Max. delovni tlak [bar] | 25 |
| Max. delovna temperatura [°C] | 150 |
| Material | Nickel-plated brass CW614N |
| Navoj 1 | G 3/8 |
| Navoj 2 | G 1/2 |

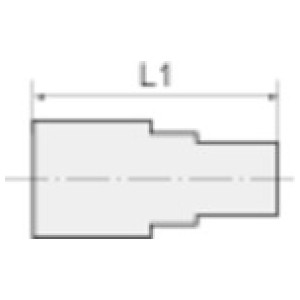

| L1 [mm] | 29.5 |
| a/f [mm] | 24 |
