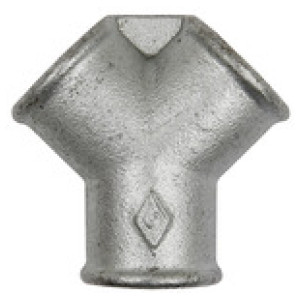

Y-kos 220, N.N./N.N./N.N.Rp 3/4,č. kovanlit. ž.
SKU: 113017RIE
EAN: 4047322395939
Y-piece 220, IT/IT/IT, Rp 3/4, Operating temperature -20°C to 300°C, black malleable cast iron, Hot-dip galvanised, DIN EN 10242
"Acc. to DIN EN 10242 (formerly DIN 2950)
The classic - and the most popular - screw fitting series for pipe construction.
These fittings are characterized by their high mechanical strength and surface quality to DIN 2444.
They are completely coated with a layer of pure zinc and are therefore suitable for drinking water
| Šifra | Navoj | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 113016RIE | Rp 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 8,39 € |  | |
| 113018RIE | Rp 1 | Čas dobave: Predvidoma 3 - 5 dni | 22,50 € | | |
| 113017RIE | Rp 3/4 | Čas dobave: Predvidoma 3 - 5 dni | 13,83 € | |
Opis
Y-piece 220, IT/IT/IT, Rp 3/4, Operating temperature -20°C to 300°C, black malleable cast iron, Hot-dip galvanised, DIN EN 10242
"Acc. to DIN EN 10242 (formerly DIN 2950)
The classic - and the most popular - screw fitting series for pipe construction.
These fittings are characterized by their high mechanical strength and surface quality to DIN 2444.
They are completely coated with a layer of pure zinc and are therefore suitable for drinking water
Tehnični podatki in specifikacije
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 300 |
| Material | Black malleable iron B350-10, design symbol A |
| Površina | Hot dip galvanised |
| Navoj | Rp 3/4 |
| Standardni navoj | acc. ISO 7-1 |
