* slike so simbolične

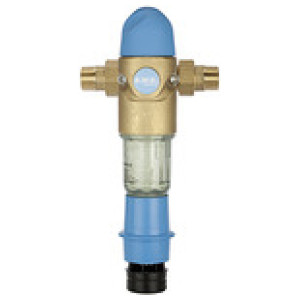

Zadnji splakovalni za pitno vodo, preizkušen na DVGW, R 3/4
SKU: 101409RIE
EAN: 4047322011822
Back flush filter for potable water, DVGW tested, 90 µm to 110 µm, R 3/4, Input pressure max. 16 bar
For filtering drinking and domestic water in addition to well, process and cooling water for once-through cooling systems. These filters protect the water pipes and all water-carrying parts of the system on the downstream side against malfunctions and corrosion damage.
The filter candle must be cleaned manually at regular intervals by back-flushing (flushing out dirt particles). Integrated back-flushing element with suction elements, back-flushing lever, wing lever for back-flushing element, hose connection for flushing water.
Obrestno financiranje
- 12,18 € x 36 mesecev
- 17,50 € x 24 mesecev
- 33,50 € x 12 mesecev
- 65,53 € x 6 mesecev
- 129,61 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Pretok KVS vrednost [m³/h] | DN | A [mm] | B [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 101410RIE | R 1 | 3.5 | 25 | 80.0 | 184.0 | Čas dobave: Predvidoma 3 - 5 dni | 358,07 € |  | |
| 101411RIE | R 1 1/4 | 4 | 32 | 106.4 | 228.0 | Čas dobave: Predvidoma 3 - 5 dni | 379,07 € | | |
| 101409RIE | R 3/4 | 3 | 20 | 80.0 | 184.0 | Čas dobave: Predvidoma 3 - 5 dni | 358,07 € | |
Opis
Back flush filter for potable water, DVGW tested, 90 µm to 110 µm, R 3/4, Input pressure max. 16 bar
For filtering drinking and domestic water in addition to well, process and cooling water for once-through cooling systems. These filters protect the water pipes and all water-carrying parts of the system on the downstream side against malfunctions and corrosion damage.
The filter candle must be cleaned manually at regular intervals by back-flushing (flushing out dirt particles). Integrated back-flushing element with suction elements, back-flushing lever, wing lever for back-flushing element, hose connection for flushing water.
Tehnični podatki in specifikacije
| Navoj | R 3/4 |
| Max. vhodni tlak [bar] | 16 |
| Ohišje | Brass |
| Rang filtra [µm] | 90 |
| Cedilna košarica | Impact-resistant plastic |
| Pretok KVS vrednost [m³/h] | 3 |
| DN | 20 |

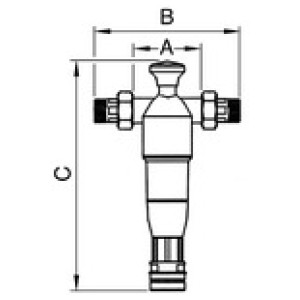

| A [mm] | 80.0 |
| B [mm] | 184.0 |
| C [mm] | 352.5 |
| Min. sobna temperatura [°C] | 5 |
| Max. sobna temperatura [°C] | 40 |
| Min. temperatura vode [°C] | 5 |
| Max. temperatura vode [°C] | 30 |
| Spodnja širina mrežice [µm] | 110 |
| Merjenje pretoka | At pressure drop Δp = 0.2 bar |
