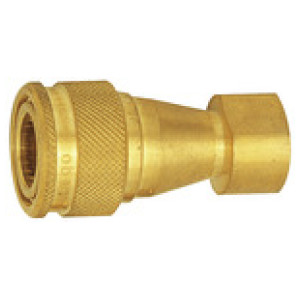

Zaklep hid. spojke na obojestransko,Med.G 1/4 N.N.I.D. 6.3
SKU: 107694RIE
EAN: 4047322061285
Hydraulic coupling locking on both sides, Bright brass, G 1/4 IT, I.D. 6.3, Operating pressure max. 200 bar, Temp. -20°C to 100°C
Hydraulic couplings, both sides sealing, for liquid media acc. to ISO 7241, B Series.
Areas of application: machine and plant engineering, manufacturing industry, chemical / pharmaceutical industry, automotive, food technology.
Čas dobave: Predvidoma 3 - 5 dni
31,76 €
| Šifra | Povezava | DN | a/f [mm] | Dolžina [mm] | Max. obratovalni tlak [bar] | Volumski pretok (zrak) [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 107696RIE | G 1/2 IT | 11 | 27 | 76.0 | 150 | 1950 | Čas dobave: Predvidoma 3 - 5 dni | 59,65 € |  | |
| 107694RIE | G 1/4 IT | 6.3 | 19 | 57.6 | 200 | 840 | Čas dobave: Predvidoma 3 - 5 dni | 31,76 € | | |
| 107695RIE | G 3/8 IT | 7.5 | 22 | 64.2 | 200 | 1280 | Čas dobave: Predvidoma 3 - 5 dni | 42,47 € | | |
| 107693RIE | G 1/8 IT | 4.3 | 14 | 48.5 | 250 | 440 | Čas dobave: Predvidoma 3 - 5 dni | 27,25 € | | |
| 107697RIE | G 3/4 IT | 13 | 34 | 96.0 | 100 | 4500 | Čas dobave: Predvidoma 3 - 5 dni | 105,07 € | |
Opis
Hydraulic coupling locking on both sides, Bright brass, G 1/4 IT, I.D. 6.3, Operating pressure max. 200 bar, Temp. -20°C to 100°C
Hydraulic couplings, both sides sealing, for liquid media acc. to ISO 7241, B Series.
Areas of application: machine and plant engineering, manufacturing industry, chemical / pharmaceutical industry, automotive, food technology.
Tehnični podatki in specifikacije
| Povezava | G 1/4 IT |
| Max. obratovalni tlak [bar] | 200 |
| a/f [mm] | 19 |
| DN | 6.3 |
| Delovni tlak | Referred to medium temp. of 50 °C, static working pressure |
| Ohišje | Brass with a bare metal surface |
| Tesnilo | NBR |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 100 |
| Min. sobna temperatura [°C] | -20 |
| Max. sobna temperatura [°C] | 100 |
| Krogla | Stainless steel |
| Vzmet | Stainless steel |
| Rokav | Brass with a bare metal surface |
| Ventil | Brass with a bare metal surface |
| Merjenje pretoka | at 6 bar and Δp = 0.5 bar |
| Pritrdilni obroč | Stainless steel |
| Dolžina [mm] | 57.6 |
| Volumski pretok (zrak) [l/min] | 840 |
