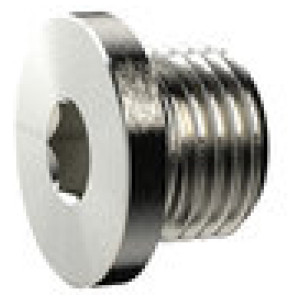

Zapiralni čep imbusG 1/2
SKU: 137913RIE
EAN: 4047322518444
Locking screw, Hexagonal socket and flange G 1/2 AF 10 nickel-plated brass Max. working pressure 25 bar Max. operating temp.150 °C
Suitable for air, water, oil, steam, etc.
Čas dobave 3 - 5 dni
2,82 €

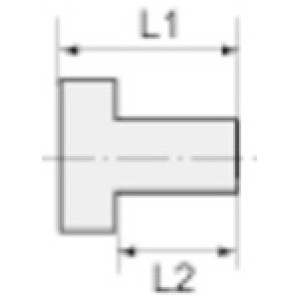

| Šifra | Navoj | a/f [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 111391RIE | G 1/8 hexagon socket head | 5 | 8.0 | 11.0 | Čas dobave 3 - 5 dni | ? | Povpraševanje |  |
| 137915RIE | G 1 hexagon socket head | 17 | 13.0 | 18.0 | Čas dobave 3 - 5 dni | 8,41 € | | |
| 137912RIE | G 3/8 hexagon socket head | 8 | 9.0 | 12.0 | Čas dobave 3 - 5 dni | 1,71 € | | |
| 111392RIE | G 1/4 hexagon socket head | 6 | 10.0 | 13.0 | Čas dobave 3 - 5 dni | ? | Povpraševanje | |
| 136438RIE | G 1 1/2 hexagon socket head | 24 | 15.0 | 20.0 | Čas dobave 3 - 5 dni | 26,74 € | | |
| 136437RIE | G 1 1/4 hexagon socket head | 22 | 14.0 | 19.0 | Čas dobave 3 - 5 dni | 21,63 € | | |
| 137913RIE | G 1/2 hexagon socket head | 10 | 11.0 | 15.0 | Čas dobave 3 - 5 dni | 2,82 € | | |
| 137910RIE | G 1/8 hexagon socket head | 5 | 7.0 | 10.0 | Čas dobave 3 - 5 dni | 0,99 € | | |
| 137914RIE | G 3/4 hexagon socket head | 12 | 12.0 | 16.0 | Čas dobave 3 - 5 dni | 5,18 € | | |
| 111394RIE | G 1/2 hexagon socket head | 10 | 14.0 | 18.0 | Čas dobave 3 - 5 dni | ? | Povpraševanje | |
| 137911RIE | G 1/4 hexagon socket head | 6 | 9.0 | 12.0 | Čas dobave 3 - 5 dni | 1,37 € | | |
| 136439RIE | G 2 hexagon socket head | 27 | 20.0 | 25.0 | Čas dobave 3 - 5 dni | 52,75 € | |
Opis
Locking screw, Hexagonal socket and flange G 1/2 AF 10 nickel-plated brass Max. working pressure 25 bar Max. operating temp.150 °C
Suitable for air, water, oil, steam, etc.
Tehnični podatki in specifikacije
| Max. delovni tlak [bar] | 25 |
| Max. delovna temperatura [°C] | 150 |
| Material | Nickel-plated brass CW614N |
| Navoj | G 1/2 hexagon socket head |
| L1 [mm] | 15.0 |
| L2 [mm] | 11.0 |
| a/f [mm] | 10 |
