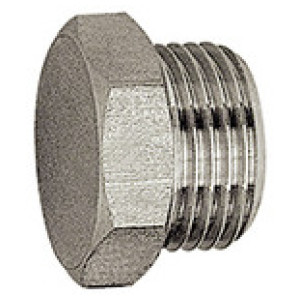

Zapiralni čep imbusG 3/8dolž. 19Inox
SKU: 111663RIE
EAN: 4047322065467
Locking screw, Exterior hexagonal, G 3/8, AF 19, Stainless steel 1.4571, Max. working pressure 60 bar, Max. operating temp. 150 °C
Čas dobave: Predvidoma 3 - 5 dni
8,10 €

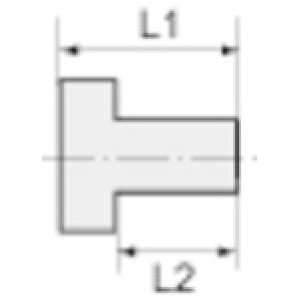

| Šifra | Navoj | L2 [mm] | L1 [mm] | a/f [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 111661RIE | G 1/8 hexagon head | 6.0 | 11.0 | 13 | Čas dobave: Predvidoma 3 - 5 dni | 6,10 € |  | |
| 111666RIE | G 1 hexagon head | 13.0 | 19.0 | 38 | Čas dobave: Predvidoma 3 - 5 dni | 35,49 € | | |
| 111662RIE | G 1/4 hexagon head | 8.0 | 13.0 | 17 | Čas dobave: Predvidoma 3 - 5 dni | 6,49 € | | |
| 111664RIE | G 1/2 hexagon head | 10.0 | 16.0 | 24 | Čas dobave: Predvidoma 3 - 5 dni | 9,49 € | | |
| 111665RIE | G 3/4 hexagon head | 11.0 | 16.0 | 30 | Čas dobave: Predvidoma 3 - 5 dni | 13,98 € | | |
| 111663RIE | G 3/8 hexagon head | 8.0 | 14.0 | 19 | Čas dobave: Predvidoma 3 - 5 dni | 8,10 € | |
Opis
Locking screw, Exterior hexagonal, G 3/8, AF 19, Stainless steel 1.4571, Max. working pressure 60 bar, Max. operating temp. 150 °C
Tehnični podatki in specifikacije
| Max. delovni tlak [bar] | 60 |
| Max. delovna temperatura [°C] | 150 |
| Material | Stainless steel 1.4571 |
| Navoj | G 3/8 hexagon head |
| L1 [mm] | 14.0 |
| L2 [mm] | 8.0 |
| a/f [mm] | 19 |
