* slike so simbolične

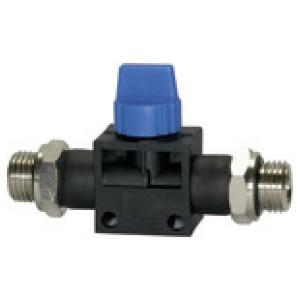

Zaporni ventil »Blue serija«, G 1/2 o., G 1/2 o.
SKU: 110067RIE
EAN: 4047322202367
Blocking valve »Blue Series«, G 1/2 o., G 1/2 o., pmin 1.5 bar, pmax short term 15 bar, Plastic / nickel-plated brassPush-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Čas dobave: Predvidoma 3 - 5 dni
33,05 €

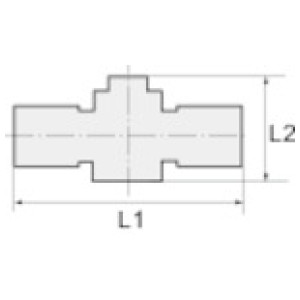

| Šifra | Navoj 1 | Navoj 2 | a/f [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 110062RIE | G 1/4 | G 1/8 | 17/14 | 42.6 | 67.6 | Čas dobave: Predvidoma 3 - 5 dni | 18,00 € |  | |
| 110065RIE | G 3/8 | G 3/8 | 20/20 | 47.0 | 82.4 | Čas dobave: Predvidoma 3 - 5 dni | 29,51 € | | |
| 110064RIE | G 3/8 | G 1/4 | 20/20 | 47.0 | 81.1 | Čas dobave: Predvidoma 3 - 5 dni | 29,51 € | | |
| 110063RIE | G 1/4 | G 1/4 | 17/17 | 42.6 | 67.6 | Čas dobave: Predvidoma 3 - 5 dni | 18,48 € | | |
| 110061RIE | G 1/8 | G 1/8 | 14/14 | 42.6 | 64.5 | Čas dobave: Predvidoma 3 - 5 dni | 14,30 € | | |
| 110066RIE | G 1/2 | G 3/8 | 24/21 | 47.0 | 86.2 | Čas dobave: Predvidoma 3 - 5 dni | 33,05 € | | |
| 110067RIE | G 1/2 | G 1/2 | 24/24 | 47.0 | 89.0 | Čas dobave: Predvidoma 3 - 5 dni | 33,05 € | |
Opis
Push-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Tehnični podatki in specifikacije
| Serija | Blue series |
| Max. working pressure short term [bar] | 15 |
| Min. delovni tlak [bar] | 1.5 |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 80 |
| Min. temperaturno območje [°C] | -20 |
| Tesnilo | NBR |
| Srednje | Compressed air, neutral and safe gases and liquids |
| Navoj 1 | G 1/2 |
| Navoj 2 | G 1/2 |
| L1 [mm] | 89.0 |
| L2 [mm] | 47.0 |
| a/f [mm] | 24/24 |
| Material | Plastic and nickel-plated brass |
