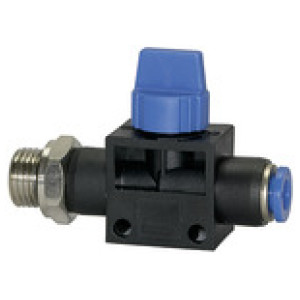

Zaporni ventil Blue serija, Vtični prik., G 1/8 , Cev Ø 8
SKU: 110076RIE
EAN: 4047322202619
Blocking valve »Blue Series«, Plug connector, G 1/8 o., for hose exterior Ø 8 mm, pmin 1.5 bar, pmax short term 15 barPush-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Čas dobave: Predvidoma 3 - 5 dni
17,18 €

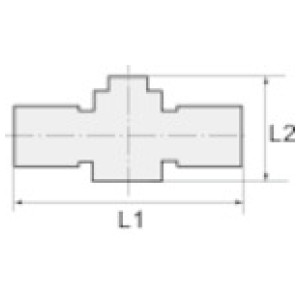

| Šifra | Navoj | Za cevi O.D. [mm] | a/f [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 110077RIE | G 1/4 | 6 | 14 | 42.6 | 59.8 | Čas dobave: Predvidoma 3 - 5 dni | 15,03 € |  | |
| 110081RIE | G 3/8 | 8 | 17 | 42.6 | 61.4 | Čas dobave: Predvidoma 3 - 5 dni | 19,58 € | | |
| 110084RIE | G 1/2 | 10 | 24 | 47.0 | 75.9 | Čas dobave: Predvidoma 3 - 5 dni | 29,51 € | | |
| 110082RIE | G 3/8 | 10 | 20 | 47.0 | 72.4 | Čas dobave: Predvidoma 3 - 5 dni | 27,71 € | | |
| 110085RIE | G 1/2 | 12 | 24 | 47.0 | 75.4 | Čas dobave: Predvidoma 3 - 5 dni | 33,05 € | | |
| 110079RIE | G 1/4 | 10 | 17 | 47.0 | 70.9 | Čas dobave: Predvidoma 3 - 5 dni | 26,89 € | | |
| 110075RIE | G 1/8 | 6 | 14 | 42.6 | 58.0 | Čas dobave: Predvidoma 3 - 5 dni | 13,75 € | | |
| 110083RIE | G 3/8 | 12 | 21 | 47.0 | 71.9 | Čas dobave: Predvidoma 3 - 5 dni | 33,05 € | | |
| 110078RIE | G 1/4 | 8 | 17 | 42.6 | 59.9 | Čas dobave: Predvidoma 3 - 5 dni | 18,00 € | | |
| 110080RIE | G 1/4 | 12 | 21 | 47.0 | 70.9 | Čas dobave: Predvidoma 3 - 5 dni | 33,05 € | | |
| 110076RIE | G 1/8 | 8 | 14 | 42.6 | 58.4 | Čas dobave: Predvidoma 3 - 5 dni | 17,18 € | |
Opis
Push-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Tehnični podatki in specifikacije
| Serija | Blue series |
| Max. working pressure short term [bar] | 15 |
| Min. delovni tlak [bar] | 1.5 |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 80 |
| Min. temperaturno območje [°C] | -20 |
| Tesnilo | NBR |
| Srednje | Compressed air, neutral and safe gases and liquids |
| Priporočena cev | PU or PA (nylon) |
| Rokav | Plastic |
| Navoj | G 1/8 |
| Za cevi O.D. [mm] | 8 |
| L1 [mm] | 58.4 |
| L2 [mm] | 42.6 |
| a/f [mm] | 14 |
| Material | Plastic and nickel-plated brass |
