* slike so simbolične

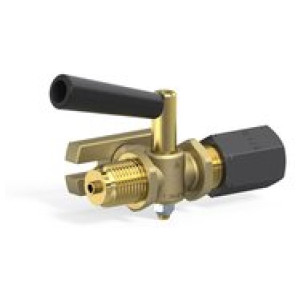

Zaporni ventili manometrov, pipa - vpenjalni tulec, G 1/4
SKU: 102656RIE
EAN: 9095080
Block valve pressure gauge, Taps - tension sleeve, bright brass housing, steel tension sleeve, G 1/4, PN 6 bar, AF 17, max. 50 °C
It is useful to install a stopcock as a shut-off element between the pressure gauge and the pipe.
When the lever is set to the »blow out« position, the medium is discharged into the atmosphere.
Stopcocks with a test port allow pressure gauges to be simultaneously connected to the pipe.
Povpraševanje
Konektor z notranjim/zunanjim navojem: Phosphatised steel
Navoj: G 1/4
Ohišje: Brass with a bare metal surface
Različica: male / female/female
Ročica: Plastic
Standard: DIN 16262-B
| Šifra | Konektor z notranjim/zunanjim navojem | Navoj | Ohišje | Različica | PN [bar] | a/f [mm] | Testna prirobnica | Standard | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 102659RIE | Phosphatised steel | G 1/2 | Brass with a bare metal surface | male / female/female, with test flange 60x25x10 | 25 | 27 | 60x25x10 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  | |
| 102658RIE | Stainless steel 1.4305 | G 1/2 | Stainless steel 1.4571 | male / female/female | 25 | 27 | DIN 16262-A | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | | |
| 102657RIE | Phosphatised steel | G 1/2 | Brass with a bare metal surface | male / female/female | 25 | 27 | DIN 16262-A | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | | |
| 102660RIE | Stainless steel 1.4305 | G 1/2 | Stainless steel 1.4571 | male / female/female, with test flange 60x25x10 | 25 | 27 | 60x25x10 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | | |
| 102661RIE | Phosphatised steel | G 1/2 | Brass with a bare metal surface | male / female/female, with test flange 40x5 | 25 | 27 | 40x5 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | | |
| 102656RIE | Phosphatised steel | G 1/4 | Brass with a bare metal surface | male / female/female | 6 | 17 | DIN 16262-B | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Block valve pressure gauge, Taps - tension sleeve, bright brass housing, steel tension sleeve, G 1/4, PN 6 bar, AF 17, max. 50 °C
It is useful to install a stopcock as a shut-off element between the pressure gauge and the pipe.
When the lever is set to the »blow out« position, the medium is discharged into the atmosphere.
Stopcocks with a test port allow pressure gauges to be simultaneously connected to the pipe.
Tehnični podatki in specifikacije
| Navoj | G 1/4 |
| PN [bar] | 6 |
| a/f [mm] | 17 |
| Max. temperaturno območje [°C] | 50 |
| Ročica | Plastic |
| Ohišje | Brass with a bare metal surface |
| Standard | DIN 16262-B |
| Različica | male / female/female |
| Konektor z notranjim/zunanjim navojem | Phosphatised steel |
| Aplikacije | For all pressure gauges with a flat gasket acc. to DIN 16258 |
