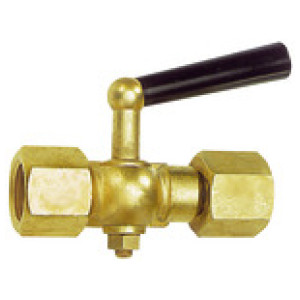

Zaporni ventili manometrov, puša- - rotirajoča puša, G 1/2
SKU: 102652RIE
EAN: 9090126
Block valve pressure gauge, Bushing - rotating bushing, made of bright brass, G 1/2, PN 25 bar, AF 27, max. 50 °C
It is useful to install a stopcock as a shut-off element between the pressure gauge and the pipe.
When the lever is set to the »blow out« position, the medium is discharged into the atmosphere.
Stopcocks with a test port allow pressure gauges to be simultaneously connected to the pipe.
| Šifra | Različica | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 102652RIE | female / loose (rotatable) female | Čas dobave: Predvidoma 3 - 5 dni | 37,54 € |  | |
| 102653RIE | female / loose (rotatable) female, with test flange 60x25x10 | Čas dobave: Predvidoma 3 - 5 dni | 48,08 € | |
Opis
Block valve pressure gauge, Bushing - rotating bushing, made of bright brass, G 1/2, PN 25 bar, AF 27, max. 50 °C
It is useful to install a stopcock as a shut-off element between the pressure gauge and the pipe.
When the lever is set to the »blow out« position, the medium is discharged into the atmosphere.
Stopcocks with a test port allow pressure gauges to be simultaneously connected to the pipe.
Tehnični podatki in specifikacije
| Navoj | G 1/2 |
| PN [bar] | 25 |
| a/f [mm] | 27 |
| Max. temperaturno območje [°C] | 50 |
| Ročica | Plastic |
| Ohišje | Brass with a bare metal surface |
| Različica | female / loose (rotatable) female |
| Aplikacije | For all pressure gauges with a flat gasket acc. to DIN 16258 |
