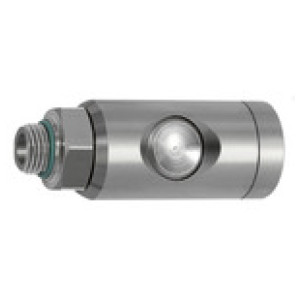

Zašč. nav. spoj. s tipko z Z.N.,I.D. 7.4,vrteče1.4404G 1/2 Z.N. slika
Zašč. nav. spoj. s tipko z Z.N.,I.D. 7.4,vrteče1.4404G 1/2 Z.N. slika

* slike so simbolične

Zašč. nav. spoj. s tipko z Z.N.,I.D. 7.4,vrteče1.4404G 1/2 Z.N.

SKU: 107582RIE
EAN: 4047322349840

Pushbutton safety coupling I.D. 7.4, rotating, Stainless steel 1.4404, G 1/2 ET, Operating pressure max. 12 bar

"

High-quality, robust and durable, one-hand quick disconnect safety couplings.

When it is pressed for the first time, air is relieved from the coupling but the plug in the coupling remains locked. The plug is only disconnected when the pushbutton is pressed for the second time.

The dreaded ""whiplash effect"" is avoided and the risk of injury to the operator virtually eliminated.

The safety version conforms to ISO-Standard DIN EN ISO 4414.

These safety couplings are not suitable for direct attachment to pulsating tools.

We recommend using our vibration dampers, according to ISO 6150 § 7.1.

Areas of application: Pneumatic system, machine and plant engineering, manufacturing industry, medical technology, chemical / pharmaceutical industry, workshops, automotive.

"
Čas dobave: Predvidoma 3 - 5 dni
300,58 €
ali od 10,24 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 10,24 € x 36 mesecev
  • 14,71 € x 24 mesecev
  • 28,17 € x 12 mesecev
  • 55,10 € x 6 mesecev
  • 108,97 € x 3 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi
Šifra Povezava a/f [mm] Dolžina [mm] Zaloga Cena Nakup Natisni
107581RIE G 3/8 ET 21 70.0
Čas dobave: Predvidoma 3 - 5 dni
292,67 € Natisni
107580RIE G 1/4 ET 21 70.0
Čas dobave: Predvidoma 3 - 5 dni
292,67 € Natisni
107582RIE G 1/2 ET 25 72.5
Čas dobave: Predvidoma 3 - 5 dni
300,58 € Natisni

Opis

Pushbutton safety coupling I.D. 7.4, rotating, Stainless steel 1.4404, G 1/2 ET, Operating pressure max. 12 bar

"

High-quality, robust and durable, one-hand quick disconnect safety couplings.

When it is pressed for the first time, air is relieved from the coupling but the plug in the coupling remains locked. The plug is only disconnected when the pushbutton is pressed for the second time.

The dreaded ""whiplash effect"" is avoided and the risk of injury to the operator virtually eliminated.

The safety version conforms to ISO-Standard DIN EN ISO 4414.

These safety couplings are not suitable for direct attachment to pulsating tools.

We recommend using our vibration dampers, according to ISO 6150 § 7.1.

Areas of application: Pneumatic system, machine and plant engineering, manufacturing industry, medical technology, chemical / pharmaceutical industry, workshops, automotive.

"

Tehnični podatki in specifikacije

DN 7.4
Max. obratovalni tlak [bar] 12
Povezava G 1/2 ET
a/f [mm] 25
Merjenje pretoka at 6 bar and Δp = 1 bar
Ohišje Stainless steel 1.4404
Tesnilo FKM
Min. temperatura medija [°C] -20
Max. temperatura medija [°C] 150
Min. sobna temperatura [°C] -20
Max. sobna temperatura [°C] 150
Pretok 1600 l/min (air)
Notranji deli Stainless steel 1.4404
Navojni kos Stainless steel 1.4404
Ventil Stainless steel 1.4404
Gumb Stainless steel 1.4404
Dolžina [mm] 72.5
