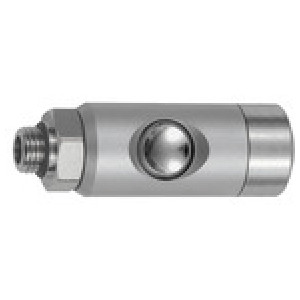

Zaščitna spojka s tipko z Z.N. I.D. 5.5,vrteče G 3/8 Z.N.
SKU: 134055RIE
EAN: 4047322483858
Pushbutton safety coupling I.D. 5.5, ARO 210, rotating, Aluminium, G 3/8 ET, Operating pressure max. 12 bar, Temp. -20°C to 70°C
"High-quality, robust and durable, one-hand quick disconnect safety couplings.
When it is pressed for the first time, air is relieved from the coupling but the plug in the coupling remains locked. The plug is only disconnected when the pushbutton is pressed for the second time.
The dreaded ""whiplash effect"" is avoided and the risk of injury to the operator virtually eliminated.
The safety version conforms to ISO-Standard DIN EN ISO 4414.
Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, workshops, automotive.
"Povpraševanje
Merjenje pretoka: at 6 bar and Δp = 1 bar
Navojni kos: Nickel-plated brass
Notranji deli: Stainless steel 1.4404
Ohišje: Anodised aluminium
Povezava: G 3/8 ET
Ventil: Hardened, galvanised steel
Vtični profil: acc. ARO 210
Pretok: 1080 l/min (air)
| Šifra | Povezava | a/f [mm] | Dolžina [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 134054RIE | G 1/4 ET | 21 | 75.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 134056RIE | G 1/2 ET | 25 | 77.5 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 134055RIE | G 3/8 ET | 21 | 75.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Pushbutton safety coupling I.D. 5.5, ARO 210, rotating, Aluminium, G 3/8 ET, Operating pressure max. 12 bar, Temp. -20°C to 70°C
"High-quality, robust and durable, one-hand quick disconnect safety couplings.
When it is pressed for the first time, air is relieved from the coupling but the plug in the coupling remains locked. The plug is only disconnected when the pushbutton is pressed for the second time.
The dreaded ""whiplash effect"" is avoided and the risk of injury to the operator virtually eliminated.
The safety version conforms to ISO-Standard DIN EN ISO 4414.
Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, workshops, automotive.
"Tehnični podatki in specifikacije
| DN | 5.5 |
| Max. obratovalni tlak [bar] | 12 |
| Povezava | G 3/8 ET |
| a/f [mm] | 21 |
| Merjenje pretoka | at 6 bar and Δp = 1 bar |
| Vtični profil | acc. ARO 210 |
| Ohišje | Anodised aluminium |
| Tesnilo | NBR |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 70 |
| Min. sobna temperatura [°C] | -20 |
| Max. sobna temperatura [°C] | 70 |
| Pretok | 1080 l/min (air) |
| Notranji deli | Stainless steel 1.4404 |
| Navojni kos | Nickel-plated brass |
| Ventil | Hardened, galvanised steel |
| Gumb | Hardened, galvanised steel |
| Dolžina [mm] | 75.0 |
