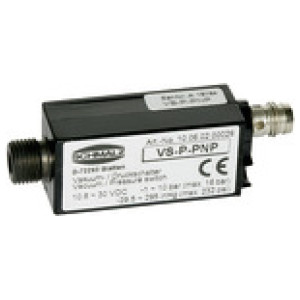

Združeni vakumsko/tlačno stikalo, polikarbonat
SKU: 108421RIE
EAN: 4047322203982
Combined vacuum / pressure switch, Polycarbonate, Measurement range -1-10 bar, Plug M8, 4-pole, G 1/8 ET, M5 IT, Temp. 0°C to 50°C
Universal electronic vacuum and pressure switch for safety monitoring, optimisation of cycle times and regulation circuits. Its small size and low weight permit installation directly at the point of use. Suitable for all special applications in the vacuum and compressed air sectors. Adjustable vacuum limit value and continuous vacuum monitoring.
Obrestno financiranje
- 10,02 € x 24 mesecev
- 19,18 € x 12 mesecev
- 37,53 € x 6 mesecev
- 74,22 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|
| 108421RIE | Čas dobave: Predvidoma 3 - 5 dni | 205,01 € |  |
Opis
Combined vacuum / pressure switch, Polycarbonate, Measurement range -1-10 bar, Plug M8, 4-pole, G 1/8 ET, M5 IT, Temp. 0°C to 50°C
Universal electronic vacuum and pressure switch for safety monitoring, optimisation of cycle times and regulation circuits. Its small size and low weight permit installation directly at the point of use. Suitable for all special applications in the vacuum and compressed air sectors. Adjustable vacuum limit value and continuous vacuum monitoring.
Tehnični podatki in specifikacije
| Max. temperaturno območje [°C] | 50 |
| Ohišje | Polycarbonate |
| izhodni signal | Analogue: 1 to 5 V |
| Preklopna zmogljivost | 125 mA |
| Izmerjena srednja povezava | G 1/8 ET and M5 IT |
| Trenutna poraba [mA] | 30 |
| Srednje | Non-aggressive gases, dry, oil-free air |
| histereza | Adjustable: 3 to 25% of set value |
| Navedba | LED |
| Električni priključek | Male connector M8, four pin |
| Operativna napetost | 10.8 to 30 V DC |
| Merilno območje min. bar | -1 |
| Merilno območje max. bar | 10 |
| Vrsta gradnje | PNP |

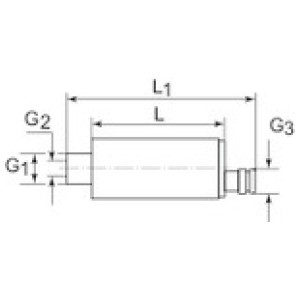

| L [mm] | 44.0 |
| L1 [mm] | 62.0 |
| G 1 | G 1/8 ET |
| G 2 | M5 IT |
| G 3 | M8x1 ET |
