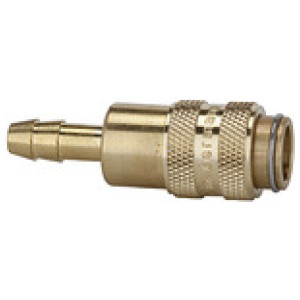

Hitre spojke I.D. 5,  zaklepanje na obeh straneh,Fi cevi I.D. 4 slika
Hitre spojke I.D. 5,  zaklepanje na obeh straneh,Fi cevi I.D. 4 slika

* slike so simbolične

Hitre spojke I.D. 5, zaklepanje na obeh straneh,Fi cevi I.D. 4

SKU: 107496RIE
EAN: 4047322059213

Quick-connect coupling I.D. 5, locking on both sides, Bright brass, Sleeve I.D. 4, Operat. pressure 0-35 bar, Temp. -20°C to 100°C

Both the coupling and the self-sealing plug are fitted with a valve.

Connection: Both valves open and the medium is allowed to pass.

Disconnection: Both valves close and the medium is prevented from escaping.

Areas of application: Pneumatic system, machine and plant engineering, Measurement, monitoring and control systems, Manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive, food technology, aerospace.

Čas dobave: Predvidoma 3 - 5 dni
9,41 €
Primerjaj z ostalimi
Šifra Povezava Zaloga Cena Nakup Natisni
107498RIE I.D. 9
Čas dobave: Predvidoma 3 - 5 dni
9,72 € Natisni
107496RIE I.D. 4
Čas dobave: Predvidoma 3 - 5 dni
9,41 € Natisni
107497RIE I.D. 6
Čas dobave: Predvidoma 3 - 5 dni
9,41 € Natisni

Opis

Quick-connect coupling I.D. 5, locking on both sides, Bright brass, Sleeve I.D. 4, Operat. pressure 0-35 bar, Temp. -20°C to 100°C

Both the coupling and the self-sealing plug are fitted with a valve.

Connection: Both valves open and the medium is allowed to pass.

Disconnection: Both valves close and the medium is prevented from escaping.

Areas of application: Pneumatic system, machine and plant engineering, Measurement, monitoring and control systems, Manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive, food technology, aerospace.

Tehnični podatki in specifikacije

DN 5
Povezava I.D. 4
Dolžina [mm] 46.5
Delovni tlak 0 to 35 bar, maximum static working pressure (non-pulsating)
Ohišje Brass with a bare metal surface
Tesnilo NBR
Min. temperatura medija [°C] -20
Max. temperatura medija [°C] 100
Min. sobna temperatura [°C] -20
Max. sobna temperatura [°C] 100
Pretok 310 l/min (air)
Krogla Stainless steel
Vzmet Stainless steel
Telo ventila Brass with a bare metal surface
Rokav Brass with a bare metal surface
Pritrdilni obroč Stainless steel
Merjenje pretoka at 6 bar and Δp = 0.5 bar
