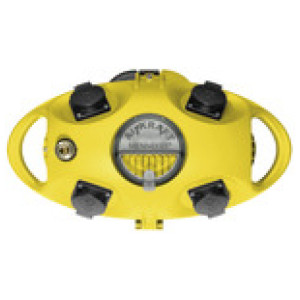

Napajalna enota,4 vtičnice SchuKo 16 A, 2-polna + 230 V slika

* slike so simbolične

Napajalna enota,4 vtičnice SchuKo 16 A, 2-polna + 230 V

SKU: 114512RIE
EAN: 4047322208017

Supply unit, 4 SchuKo sockets 16 A, 2-pole + 230 V, incl. compressed air connection I.D. 7.2 with 9 mm connector, IP 44

Receptacle combination with low power (4 SCHUKO receptacles 16 A 2p + E 230 V), high power or combined connections (3 SCHUKO receptacles 16 A 2p + E 230 V, 1 CEEform receptacle 16 A 5p 400 V).

Equipped with a pneumatic connection (DN 7.2 coupling with 9 mm stem).

Cable entries:

Top: 1xM32, 1xM25, 2xM20

Side: 1xM25

One opening at the top for pneumatic connection (all openings can be cut out).

Čas dobave: Predvidoma 3 - 5 dni
418,87 €
ali od 11,16 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 11,16 € x 48 mesecev
  • 14,26 € x 36 mesecev
  • 20,48 € x 24 mesecev
  • 39,21 € x 12 mesecev
  • 76,70 € x 6 mesecev
  • 151,69 € x 3 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi
Šifra Barva Opremljen z Zaloga Cena Nakup Natisni
114512RIE Yellow 4 SCHUKO receptacles
Čas dobave: Predvidoma 3 - 5 dni
418,87 € Natisni
114513RIE Silver 3 SCHUKO receptacles,1 CEEform receptacle
Čas dobave: Predvidoma 3 - 5 dni
434,11 € Natisni

Opis

Supply unit, 4 SchuKo sockets 16 A, 2-pole + 230 V, incl. compressed air connection I.D. 7.2 with 9 mm connector, IP 44

Receptacle combination with low power (4 SCHUKO receptacles 16 A 2p + E 230 V), high power or combined connections (3 SCHUKO receptacles 16 A 2p + E 230 V, 1 CEEform receptacle 16 A 5p 400 V).

Equipped with a pneumatic connection (DN 7.2 coupling with 9 mm stem).

Cable entries:

Top: 1xM32, 1xM25, 2xM20

Side: 1xM25

One opening at the top for pneumatic connection (all openings can be cut out).

Tehnični podatki in specifikacije

Integrirano Hanging eyelets, wall mounting fixing and standing feet
IP zaščita IP 44
Ohišje Amaplast with hinged cover
Varovalka Beneath transparent lid (4 MW)
Različica Pre-wired
Opremljen z 4 SCHUKO receptacles
Barva Yellow
