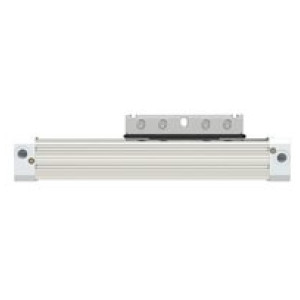

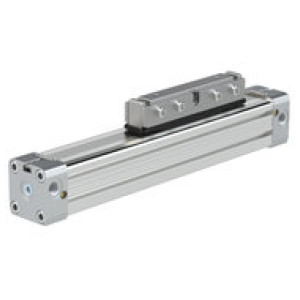

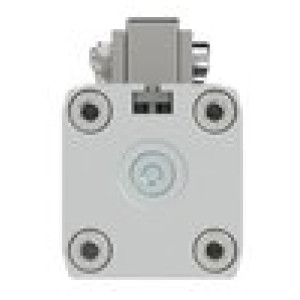

Piston rod-free cylinder ZRL1C, Ø 40, Stroke 1600, Standard
SKU: 129859RIE
EAN: 4047322742078
Piston rod-free cylinder ZRL1C, Ø 40, Stroke 1600, Standard, Working pressure 0,5 - 8 bar, Temp. -10 to 80 °C
Rodless cylinder in classic design with high carriage. Please refer to our type code for the available variants and their corresponding type designations for your individual inquiry. Other special designs are also available on request
The integrated sliding guide allows higher loads and makes the cylinders less sensitive to moisture, dirt and shocks.
Suitable for filtered (50 µm) and unlubricated or lubricated compressed air. Please ensure continuous oiling when using oiled compressed air.
Povpraševanje
Ffunkcija: double-acting
Magnet: with magnet
Piston caps and sliding parts: abrasion-resistant plastic
Povezava: G 1 /4
Sealing bands: Stainless steel
Tesnilo: Oil proof synthetic material (NBR)
| Šifra | Povezava | Bat Ø [mm] | Stroke [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 129859RIE | G 1 /4 | 40 | 1600 | Ni na zalogi | ? | Povpraševanje |  |
| 129682RIE | G 1 /4 | 32 | 100 | Ni na zalogi | ? | Povpraševanje | |
| 129680RIE | M5 | 16 | 100 | Ni na zalogi | ? | Povpraševanje | |
| 129681RIE | G 1/8 | 25 | 100 | Ni na zalogi | ? | Povpraševanje | |
| 129683RIE | G 1 /4 | 40 | 100 | Ni na zalogi | ? | Povpraševanje | |
Opis
Piston rod-free cylinder ZRL1C, Ø 40, Stroke 1600, Standard, Working pressure 0,5 - 8 bar, Temp. -10 to 80 °C
Rodless cylinder in classic design with high carriage. Please refer to our type code for the available variants and their corresponding type designations for your individual inquiry. Other special designs are also available on request
The integrated sliding guide allows higher loads and makes the cylinders less sensitive to moisture, dirt and shocks.
Suitable for filtered (50 µm) and unlubricated or lubricated compressed air. Please ensure continuous oiling when using oiled compressed air.
Tehnični podatki in specifikacije
| Magnet | with magnet |
| Ffunkcija | double-acting |
| Cushioning | cushioned |
| Min. delovni tlak [bar] | 0.5 |
| Max. delovni tlak [bar] | 8 |
| Min. temperaturno območje [°C] | -10 |
| Max. temperaturno območje [°C] | 80 |
| Tesnilo | Oil proof synthetic material (NBR) |
| Sealing bands | Stainless steel |
| Bat Ø [mm] | 40 |
| Stroke [mm] | 1600 |
| Povezava | G 1 /4 |
| Piston caps and sliding parts | abrasion-resistant plastic |
