Servisna enota VARNOSTNA »FUTURA«, Velikost 4, G 1
SKU: 100272RIE
EAN: 4047322246538

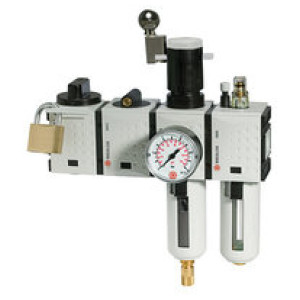

Service station SAFETY »FUTURA«, Ball valve - start-up valve - 2-part service unit, Size 4, G 1, Input pressure 2.5 - 16 bar
These compressed air service unit sets, comprising a ball valve with silencer, a start-up valve and one out of a pressure regulator, filter regulator or service unit, meet even the strictest requirements for operating reliability and accident prevention!
Obrestno financiranje
- 24,92 € x 48 mesecev
- 31,85 € x 36 mesecev
- 45,75 € x 24 mesecev
- 87,58 € x 12 mesecev
- 171,33 € x 6 mesecev
- 338,86 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Odtok kondenzata | Velikost | C [mm] | A [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 100264RIE | G 1/2 | Semi-automatic | 2 | 110.0 | 252.0 | 257.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 361,52 € |  | |
| 100263RIE | G 3/8 | Semi-automatic | 2 | 110.0 | 252.0 | 257.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 361,52 € | | |
| 100267RIE | G 1/4 | Fully-automatic | 1 | 96.0 | 208.0 | 243.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 293,40 € | | |
| 100272RIE | G 1 | Fully-automatic | 4 | 137.0 | 340.0 | 343.0 | 10000 | Čas dobave: Predvidoma 3 - 5 dni | 935,68 € | | |
| 100268RIE | G 3/8 | Fully-automatic | 1 | 96.0 | 208.0 | 243.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 293,40 € | | |
| 100262RIE | G 3/8 | Semi-automatic | 1 | 96.0 | 208.0 | 226.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 238,56 € | | |
| 100266RIE | G 1 | Semi-automatic | 4 | 137.0 | 340.0 | 326.0 | 10000 | Čas dobave: Predvidoma 3 - 5 dni | 872,41 € | | |
| 100271RIE | G 3/4 | Fully-automatic | 4 | 137.0 | 340.0 | 343.0 | 10000 | Čas dobave: Predvidoma 3 - 5 dni | 935,68 € | | |
| 100265RIE | G 3/4 | Semi-automatic | 4 | 137.0 | 340.0 | 326.0 | 10000 | Čas dobave: Predvidoma 3 - 5 dni | 872,41 € | | |
| 100270RIE | G 1/2 | Fully-automatic | 2 | 110.0 | 252.0 | 273.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 400,27 € | | |
| 100261RIE | G 1/4 | Semi-automatic | 1 | 96.0 | 208.0 | 226.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 238,56 € | | |
| 100269RIE | G 3/8 | Fully-automatic | 2 | 110.0 | 252.0 | 273.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 400,27 € | |
Opis
Service station SAFETY »FUTURA«, Ball valve - start-up valve - 2-part service unit, Size 4, G 1, Input pressure 2.5 - 16 bar
These compressed air service unit sets, comprising a ball valve with silencer, a start-up valve and one out of a pressure regulator, filter regulator or service unit, meet even the strictest requirements for operating reliability and accident prevention!
Tehnični podatki in specifikacije
| Navoj | G 1 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 4 |
| Min. vhodni tlak [bar] | 2.5 |
| Min. temperaturno območje [°C] | -10 |
| Max. temperaturno območje [°C] | 50 |
| Ohišje | PA66 GF60 |
| Priključni navoj | Material: Die-cast zinc |
| Tesnilo | NBR |
| Membrane | NBR |
| Min. krmilno območje [bar] | 2.5 |
| Max. krmilno območje [bar] | 8 |
| Zaslon manometra max. [bar] | 10 |
| Element filtra | Cellpor (PE) |
| Rang filtra [µm] | 5 |
| Odzračevalni vtič | Silencer (ball valve) |
| Pretok [l/min] | 10000 |
| Poraba zraka | Yes |
| Max. notranja poraba zraka | 1.5 l/min (depending on secondary pressure) |

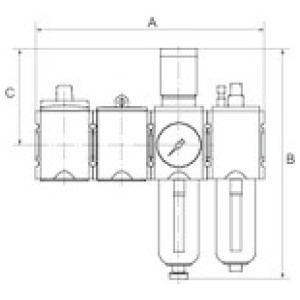

| A [mm] | 340.0 |
| B [mm] | 343.0 |
| C [mm] | 137.0 |
| Serija | FUTURA |
| Srednje | Compressed air, neutral gases |
| Merjenje pretoka | At P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 1 bar |
| Odtok kondenzata | Fully-automatic |
