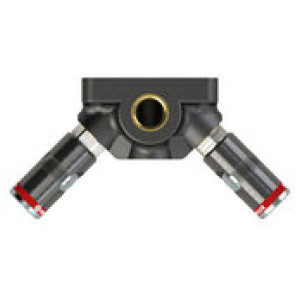

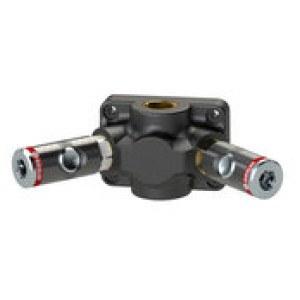

Stenski prikljulček z varnostno sklopko I.D. 7.4

SKU: 107578RIE
EAN: 4047322401814

End distributor socket, 2 safety couplingsI.D.7.4, input G3/4, Op.pressure max.12bar, Temp.air-10°C to 50°C,Temp.water 1°C to 50°C

2 or 3-way distributor sockets made of high-strength glass fibre-reinforced plastic (PA6 GF 30) for a wide range of applications. All distributor sockets have a durable brass threaded insert, whose shape secures it against rotation and against axial shift due to its shape. Drilling diagram dimensions are identical for all distributor sockets, so a simpler and more flexible exchange replacement. Caution: Note that the distributor sockets should not be installed in danges zones. Danger zones are, for example, transport routes, escape routes, etc.

Čas dobave: Predvidoma 3 - 5 dni
127,73 €
ali od 11,98 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 11,98 € x 12 mesecev
  • 23,43 € x 6 mesecev
  • 46,34 € x 3 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi
Šifra Dovodni navoj Spojka Zaloga Cena Nakup Natisni
107577RIE G 1/2 3 x Safety coupling
Čas dobave: Predvidoma 3 - 5 dni
140,08 € Natisni
107576RIE G 1/2 2 x Safety coupling
Čas dobave: Predvidoma 3 - 5 dni
99,75 € Natisni
107579RIE G 3/4 3 x Safety coupling
Čas dobave: Predvidoma 3 - 5 dni
166,75 € Natisni
107578RIE G 3/4 2 x Safety coupling
Čas dobave: Predvidoma 3 - 5 dni
127,73 € Natisni

Opis

End distributor socket, 2 safety couplingsI.D.7.4, input G3/4, Op.pressure max.12bar, Temp.air-10°C to 50°C,Temp.water 1°C to 50°C

2 or 3-way distributor sockets made of high-strength glass fibre-reinforced plastic (PA6 GF 30) for a wide range of applications. All distributor sockets have a durable brass threaded insert, whose shape secures it against rotation and against axial shift due to its shape. Drilling diagram dimensions are identical for all distributor sockets, so a simpler and more flexible exchange replacement. Caution: Note that the distributor sockets should not be installed in danges zones. Danger zones are, for example, transport routes, escape routes, etc.

Tehnični podatki in specifikacije

Dovodni navoj G 3/4
Max. obratovalni tlak [bar] 12
Min. delovna temperatura v zraku [°C] -10
Max. delovna temperatura v zraku [°C] 50
Min. delovna temperatura v vodi [°C] 1
Max. delovna temperatura v vodi [°C] 50
Spojka 2 x Safety coupling
Max. moment privijanja - medeninasta nit [Nm] 12
Max. moment privijanja - pritrdilne luknje [Nm] 4
Ohišje Glass fibre-reinforced plastic PA6 GF 30
Material navojev Brass
Premer [mm] 156.0
Višina [mm] 59.0
