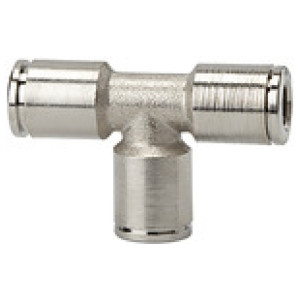

Vtični T-konektorja »Metallica«, za cev zunanja Ø 6 mm
SKU: 108989RIE
EAN: 4047322279161
Push-in T-connector »metallica«, for hose exterior Ø 6, Working pressure -0.98 to 16 bar, Operating temperature -20 °C to 150 °C
"All parts with a parallel thread are supplied with an FPM O-ring while the conical threads are coated with preCOTE 5 dispersion
Na zalogi - preveri zalogo po poslovalnicah
Zaloga po poslovalnicah
- Ljubljana Na zalogi
- Maribor Na zalogi
6,26 €
| Šifra | Za cevi O.D. [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 108991RIE | 10 | 25.0 | 50.0 | Čas dobave: Predvidoma 3 - 5 dni | 9,55 € |  | |
| 108990RIE | 8 | 23.0 | 46.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,75 € | | |
| 108988RIE | 4 | 17.0 | 34.0 | Na zalogi | 5,94 € | | |
| 108992RIE | 12 | 27.0 | 54.0 | Čas dobave: Predvidoma 3 - 5 dni | 11,63 € | | |
| 136782RIE | 16 | 36.0 | 72.0 | Čas dobave: Predvidoma 3 - 5 dni | 59,17 € | | |
| 108989RIE | 6 | 19.5 | 39.0 | Na zalogi | 6,26 € | | |
| 108993RIE | 14 | 31.0 | 62.0 | Čas dobave: Predvidoma 3 - 5 dni | 15,32 € | |
Opis
Push-in T-connector »metallica«, for hose exterior Ø 6, Working pressure -0.98 to 16 bar, Operating temperature -20 °C to 150 °C
"All parts with a parallel thread are supplied with an FPM O-ring while the conical threads are coated with preCOTE 5 dispersion
Tehnični podatki in specifikacije
| Serija | metallica |
| Min. delovni tlak [bar] | -0.98 |
| Max. delovni tlak [bar] | 16 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 150 |
| Priporočena cev | PA and PU |
| Rokav | Nickel-plated brass |
| Vpenjalni obroč | Union tees |
| Za cevi O.D. [mm] | 6 |
| L1 [mm] | 39.0 |
| L2 [mm] | 19.5 |
| Material | Nickel-plated brass |
