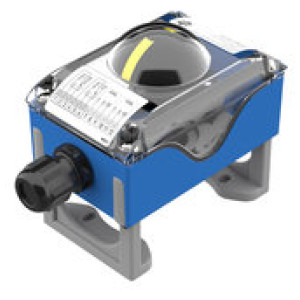

End position feedback PA6/PC, microswitch, 12-250V AC/DC
SKU: 117213RIE
EAN: 4047322719957
End position feedback PA6/PC, microswitch SPDT DX44 (NO/NC), AC: 250V, 10A, DC: 24V, 2,5A, ambient temp. -25 °C to 80 °C
Robust and compact end position feedback with plastic housing.
- Actuator hole spacings 80x30mm or 130x30mm
- Height-adjustable assembly bridge for actuator shaft heights 20/30/40/50mm
- 3D position indicator also visible from a distance
- Easy-to-adjust, self-locking trip cam
Povpraševanje
Kabelska uvodnica: M20x1.5
Nominalna preklopna zmogljivost: AC: 10A/250V, DC: 2.5A/24V
Ohišje: PA6/PC
Opis: SPDT - microswitch double
Preklopna funkcija: Changeover (NO/NC), silver-plated contacts
Različica: with microswitch
Območje napetosti: 12-250 V AC/DC
| Šifra | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|
| 117213RIE | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
Opis
End position feedback PA6/PC, microswitch SPDT DX44 (NO/NC), AC: 250V, 10A, DC: 24V, 2,5A, ambient temp. -25 °C to 80 °C
Robust and compact end position feedback with plastic housing.
- Actuator hole spacings 80x30mm or 130x30mm
- Height-adjustable assembly bridge for actuator shaft heights 20/30/40/50mm
- 3D position indicator also visible from a distance
- Easy-to-adjust, self-locking trip cam
Tehnični podatki in specifikacije
| Območje napetosti | 12-250 V AC/DC |
| Ohišje | PA6/PC |
| Preklopna funkcija | Changeover (NO/NC), silver-plated contacts |
| IP zaščita | IP 67, acc. to DIN EN 60529 |
| Kabelska uvodnica | M20x1.5 |
| Nominalna preklopna zmogljivost | AC: 10A/250V, DC: 2.5A/24V |
| Opis | SPDT - microswitch double |
| Različica | with microswitch |
| Min. sobna temperatura [°C] | -25 |
| Max. sobna temperatura [°C] | 80 |
