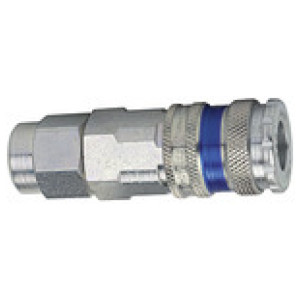

Hitre spojke I.D. 7.6 »stream line«, pocinkano /Medenina
SKU: 107367RIE
EAN: 4047322274883
Quick-connect coupling I.D. 7.6, »stream line«, galvanised steel / brass, for hose 10x6.5, Operating pressure max. 16 bar
High-quality, one-hand quick disconnect couplings made of brass / steel for high flow rates.
Specially designed for all applications susceptible to severe mechanical wear.
Strong, impact and vibration-resistant design for demanding environments.
The stream line type has an integrated hose stem.
Povpraševanje
Ohišje: Steel
Rokav: Hardened and nickel-plated steel
Vzmet: Stainless steel
Za cevi [mm]: 10x6.5
Pretok: 2100 l/min (air)
| Šifra | Za cevi [mm] | a/f 1 [mm] | a/f 2 [mm] | Dolžina [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 107370RIE | 16x11 | 24 | 24 | 68.0 | Čas dobave: Predvidoma 3 - 5 dni | 43,98 € |  | |
| 107368RIE | 12x8 | 19 | 20 | 68.0 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 107369RIE | 13.5x9.5 | 21 | 20 | 68.0 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 107367RIE | 10x6.5 | 16 | 20 | 64.0 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
Opis
Quick-connect coupling I.D. 7.6, »stream line«, galvanised steel / brass, for hose 10x6.5, Operating pressure max. 16 bar
High-quality, one-hand quick disconnect couplings made of brass / steel for high flow rates.
Specially designed for all applications susceptible to severe mechanical wear.
Strong, impact and vibration-resistant design for demanding environments.
The stream line type has an integrated hose stem.
Tehnični podatki in specifikacije
| DN | 7.6 |
| Max. obratovalni tlak [bar] | 16 |
| Ohišje | Steel |
| Tesnilo | NBR |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 100 |
| Min. sobna temperatura [°C] | -20 |
| Max. sobna temperatura [°C] | 100 |
| Pretok | 2100 l/min (air) |
| Vzmet | Stainless steel |
| Rokav | Hardened and nickel-plated steel |
| Merjenje pretoka | at 6 bar and Δp = 0.5 bar |
| Dolžina [mm] | 64.0 |
| Za cevi [mm] | 10x6.5 |
| a/f 1 [mm] | 16 |
| a/f 2 [mm] | 20 |
