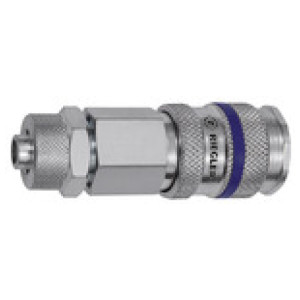

Hitre spojke I.D. 7.8, , cevni priklop 10x8
SKU: 141524RIE
EAN: 4047322568166
Quick-connect coupling I.D. 7.8, Steel, Hose connection 10x8, Operating pressure 0 - 35 bar, Temp. -20 °C to 100 °C
"Single-sided blocking, high quality and robust quick connect coupling for high flow values.
To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.
These quick disconnect couplings are not suitable for direct attachment to pulsating tools.
We recommend using our vibration dampers, according to ISO 6150 § 7.1.
Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, workshops, automotive, mining.
"| Šifra | Povezava | Dolžina [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|
| 141523RIE | Hose connection 8x6 | 61.0 | Čas dobave: Predvidoma 3 - 5 dni | 22,25 € |  | |
| 141524RIE | Hose connection 10x8 | 64.0 | Čas dobave: Predvidoma 3 - 5 dni | 22,25 € | | |
| 141525RIE | Hose connection 12x9 | 64.0 | Čas dobave: Predvidoma 3 - 5 dni | 22,25 € | |
Opis
Quick-connect coupling I.D. 7.8, Steel, Hose connection 10x8, Operating pressure 0 - 35 bar, Temp. -20 °C to 100 °C
"Single-sided blocking, high quality and robust quick connect coupling for high flow values.
To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.
These quick disconnect couplings are not suitable for direct attachment to pulsating tools.
We recommend using our vibration dampers, according to ISO 6150 § 7.1.
Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, workshops, automotive, mining.
"Tehnični podatki in specifikacije
| DN | 7.8 |
| Povezava | Hose connection 10x8 |
| Delovni tlak | 0 - 35 bar |
| Ohišje | Galvanised steel |
| Tesnilo | NBR |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 100 |
| Min. sobna temperatura [°C] | -20 |
| Max. sobna temperatura [°C] | 100 |
| Pretok | 2000 l/min (air) |
| Krogla | Stainless steel |
| Vzmet | Stainless steel |
| Rokav | Galvanised steel |
| Merjenje pretoka | at 6 bar and Δp = 0.5 bar |
| Navojni kos | Galvanised steel |
| Ventil | Die-cast zinc (zamac) |
| a/f [mm] | 19 |
| Dolžina [mm] | 64.0 |
