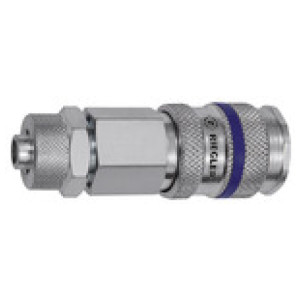

Hitre spojke I.D. 7.8, , cevni priklop 8x6 slika
Hitre spojke I.D. 7.8, , cevni priklop 8x6 slika

* slike so simbolične

Hitre spojke I.D. 7.8, , cevni priklop 8x6

SKU: 141523RIE
EAN: 4047322568159

Quick-connect coupling I.D. 7.8, Steel, Hose connection 8x6, Operating pressure 0 - 35 bar, Temp. -20 °C to 100 °C

"

Single-sided blocking, high quality and robust quick connect coupling for high flow values.

To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.

These quick disconnect couplings are not suitable for direct attachment to pulsating tools.

We recommend using our vibration dampers, according to ISO 6150 § 7.1.

Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, workshops, automotive, mining.

"
Čas dobave: Predvidoma 3 - 5 dni
22,25 €
Primerjaj z ostalimi
Šifra Povezava Dolžina [mm] Zaloga Cena Nakup Natisni
141523RIE Hose connection 8x6 61.0
Čas dobave: Predvidoma 3 - 5 dni
22,25 € Natisni
141524RIE Hose connection 10x8 64.0
Čas dobave: Predvidoma 3 - 5 dni
22,25 € Natisni
141525RIE Hose connection 12x9 64.0
Čas dobave: Predvidoma 3 - 5 dni
22,25 € Natisni

Opis

Quick-connect coupling I.D. 7.8, Steel, Hose connection 8x6, Operating pressure 0 - 35 bar, Temp. -20 °C to 100 °C

"

Single-sided blocking, high quality and robust quick connect coupling for high flow values.

To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.

These quick disconnect couplings are not suitable for direct attachment to pulsating tools.

We recommend using our vibration dampers, according to ISO 6150 § 7.1.

Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, workshops, automotive, mining.

"

Tehnični podatki in specifikacije

DN 7.8
Povezava Hose connection 8x6
Delovni tlak 0 - 35 bar
Ohišje Galvanised steel
Tesnilo NBR
Min. temperatura medija [°C] -20
Max. temperatura medija [°C] 100
Min. sobna temperatura [°C] -20
Max. sobna temperatura [°C] 100
Pretok 2000 l/min (air)
Krogla Stainless steel
Vzmet Stainless steel
Rokav Galvanised steel
Merjenje pretoka at 6 bar and Δp = 0.5 bar
Navojni kos Galvanised steel
Ventil Die-cast zinc (zamac)
a/f [mm] 19
Dolžina [mm] 61.0
