* slike so simbolične

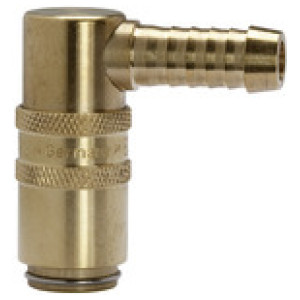

Kaljena spojka DN6, navoj 9 mm, Medenina, konus 90°
SKU: 107916RIE
EAN: 4047322258012
Tempered coupling DN 6, Taps 9 mm, Brass, Hose sleeve 90°, Operating pressure max. 15 bar, Medium/ambient temp. -20 °C to 160 °C
Compatible with HASCO Z 8 system.
For temperature control applications involving hot or cold water or heat transfer oil, e.g. for cooling circuits on plastics processing machines.
Optionally with free passage, one or both sides sealing.
Female-threaded couplings and plugs with female-threaded PTFE seal.
| Šifra | Dolžina [mm] | Tip stebelnih cevi | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|
| 107915RIE | 42.5 | 45° | Čas dobave: Predvidoma 3 - 5 dni | 24,62 € |  | |
| 107916RIE | 42.5 | 90° | Čas dobave: Predvidoma 3 - 5 dni | 24,62 € | | |
| 107914RIE | 53.0 | straight | Čas dobave: Predvidoma 3 - 5 dni | 13,63 € | |
Opis
Tempered coupling DN 6, Taps 9 mm, Brass, Hose sleeve 90°, Operating pressure max. 15 bar, Medium/ambient temp. -20 °C to 160 °C
Compatible with HASCO Z 8 system.
For temperature control applications involving hot or cold water or heat transfer oil, e.g. for cooling circuits on plastics processing machines.
Optionally with free passage, one or both sides sealing.
Female-threaded couplings and plugs with female-threaded PTFE seal.
Tehnični podatki in specifikacije
| Max. obratovalni tlak [bar] | 15 |
| Srednje | Air, water, oil, vacuum |
| Material | Brass 2.0401 |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 160 |
| Min. sobna temperatura [°C] | -20 |
| Max. sobna temperatura [°C] | 160 |
| Tesnilo | FPM (PTFE coated) |
| Krogla | Stainless steel |
| Vzmet | Stainless steel |
| Pritrdilni obroč | Stainless steel |
| Tip stebelnih cevi | 90° |
| Priključek za cev [mm] | 9 |
| Dolžina [mm] | 42.5 |
