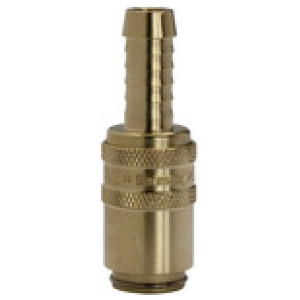

Kaljena spojka DN6, navoj 9 mm, Medenina, konus raven slika

* slike so simbolične

Kaljena spojka DN6, navoj 9 mm, Medenina, konus raven

SKU: 107914RIE
EAN: 4047322257992

Tempered coupling DN 6, Taps 9 mm, Brass, Hose sleeve straight, Operating pressure max. 15 bar, Med./ambient temp. -20°C to 160°C

Compatible with HASCO Z 8 system.

For temperature control applications involving hot or cold water or heat transfer oil, e.g. for cooling circuits on plastics processing machines.

Optionally with free passage, one or both sides sealing.

Female-threaded couplings and plugs with female-threaded PTFE seal.

Čas dobave: Predvidoma 3 - 5 dni
13,63 €
Primerjaj z ostalimi
Šifra Dolžina [mm] Tip stebelnih cevi Zaloga Cena Nakup Natisni
107915RIE 42.5 45°
Čas dobave: Predvidoma 3 - 5 dni
24,62 € Natisni
107916RIE 42.5 90°
Čas dobave: Predvidoma 3 - 5 dni
24,62 € Natisni
107914RIE 53.0 straight
Čas dobave: Predvidoma 3 - 5 dni
13,63 € Natisni

Opis

Tempered coupling DN 6, Taps 9 mm, Brass, Hose sleeve straight, Operating pressure max. 15 bar, Med./ambient temp. -20°C to 160°C

Compatible with HASCO Z 8 system.

For temperature control applications involving hot or cold water or heat transfer oil, e.g. for cooling circuits on plastics processing machines.

Optionally with free passage, one or both sides sealing.

Female-threaded couplings and plugs with female-threaded PTFE seal.

Tehnični podatki in specifikacije

Max. obratovalni tlak [bar] 15
Srednje Air, water, oil, vacuum
Material Brass 2.0401
Min. temperatura medija [°C] -20
Max. temperatura medija [°C] 160
Min. sobna temperatura [°C] -20
Max. sobna temperatura [°C] 160
Tesnilo FPM (PTFE coated)
Krogla Stainless steel
Vzmet Stainless steel
Pritrdilni obroč Stainless steel
Tip stebelnih cevi straight
Priključek za cev [mm] 9
Dolžina [mm] 53.0
