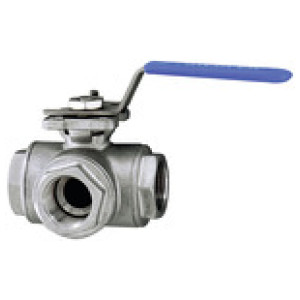

3-pot. krog. ventil, T-izpust, ner.jeklo 1.4408, G 2, DN 50
SKU: 103476RIE
EAN: 4047322013031
3-way ball valve, T-hole, Stainless steel 1.4408, Operating temperature max. 160 °C, G 2, DN 50, PN max. 63 bar
With L or T-bore, reduced bore.
Version for sealing on all sides with integrated ISO flange plate (ISO 5211).
The lever can be turned 360° to allow several switching variants.
Obrestno financiranje
- 18,00 € x 48 mesecev
- 23,00 € x 36 mesecev
- 33,04 € x 24 mesecev
- 63,26 € x 12 mesecev
- 123,74 € x 6 mesecev
- 244,73 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

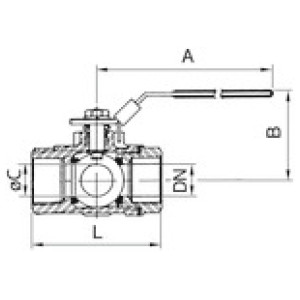

Šifra | Navoj | C Ø [mm] | DN | B [mm] | L [mm] | A [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|---|
103472RIE | G 3/4 | 16.0 | 20 | 78.0 | 87.0 | 133.0 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
103474RIE | G 1 1/4 | 25.0 | 32 | 92.0 | 123.0 | 187.0 | Čas dobave: Predvidoma 3 - 5 dni | 383,70 € | ||
103475RIE | G 1 1/2 | 31.8 | 40 | 98.0 | 142.0 | 187.0 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
103473RIE | G 1 | 20.0 | 25 | 83.0 | 100.0 | 133.0 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
103471RIE | G 1/2 | 12.5 | 15 | 73.0 | 80.0 | 114.0 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
103476RIE | G 2 | 38.1 | 50 | 126.0 | 170.0 | 187.0 | Čas dobave: Predvidoma 3 - 5 dni | 675,84 € |
Opis
3-way ball valve, T-hole, Stainless steel 1.4408, Operating temperature max. 160 °C, G 2, DN 50, PN max. 63 bar
With L or T-bore, reduced bore.
Version for sealing on all sides with integrated ISO flange plate (ISO 5211).
The lever can be turned 360° to allow several switching variants.
Tehnični podatki in specifikacije
Tesnilo | RTFE |
Max. obratovalni tlak [bar] | 63 |
Material | Stainless steel 1.4408 |
Ročica | Stainless steel |
Max. delovna temperatura [°C] | 160 |
Navoj | G 2 |
DN | 50 |
Standardni navoj | G thread acc. to DIN EN ISO 228-1 |
A [mm] | 187.0 |
B [mm] | 126.0 |
L [mm] | 170.0 |
C Ø [mm] | 38.1 |
