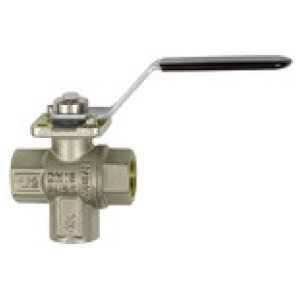

3-potni krogelni ventil, nikljana medenina, L-izpust, Rp 1
SKU: 136330RIE
EAN: 4047322504683
3-way ball valve, nickel-plated brass, Connection bottom, L-hole, Rp 1, DN 25, Operating temp. -15 °C to 120 °C, PN max. 16 bar
3-way ball valve with full throughput, integrated ISO flange plate (ISO 5211) and double-sided sealed ball.
Pressurisation is only possible via the lower connection.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
3-potni krogelni ventil, nikljana medenina, L-izpust, Rp 1
Krogla: Nickel-plated brass (CW617N)
Material navojev: Brass
Ohišje: Nickel-plated brass (CW617N)
Ročica: Steel with plastic coating
Standardni navoj: Rp thread acc. to ISO 7-1
Stebelno tesnilo: PTFE / FKM
A [mm]: 115.0
Material navojev: Brass
Ohišje: Nickel-plated brass (CW617N)
Ročica: Steel with plastic coating
Standardni navoj: Rp thread acc. to ISO 7-1
Stebelno tesnilo: PTFE / FKM
A [mm]: 115.0
Aktivni filtri - 0

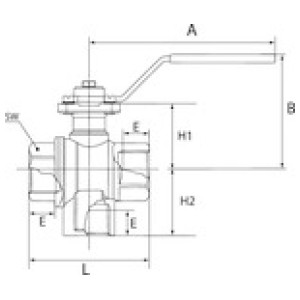

| Šifra | Navoj | PN [bar] | E [mm] | DN | H1 [mm] | a/f [mm] | H2 [mm] | B [mm] | L [mm] | A [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 136326RIE | Rp 1/4 | 25 | 11.0 | 8 | 28.5 | 22 | 26.0 | 60.0 | 52.0 | 115.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 136327RIE | Rp 3/8 | 25 | 11.4 | 10 | 28.5 | 22 | 26.0 | 60.0 | 52.0 | 115.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 136328RIE | Rp 1/2 | 25 | 15.0 | 15 | 31.0 | 27 | 33.5 | 62.0 | 64.0 | 115.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 136329RIE | Rp 3/4 | 16 | 16.3 | 20 | 42.0 | 32 | 39.5 | 43.0 | 74.0 | 115.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 136330RIE | Rp 1 | 16 | 19.1 | 25 | 45.0 | 41 | 47.0 | 76.0 | 89.0 | 115.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 136331RIE | Rp 1 1/4 | 10 | 21.4 | 32 | 49.0 | 50 | 54.5 | 79.5 | 100.0 | 115.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 136332RIE | Rp 1 1/2 | 10 | 21.4 | 40 | 61.5 | 55 | 61.5 | 95.0 | 110.0 | 170.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 136333RIE | Rp 2 | 10 | 25.7 | 50 | 67.0 | 70 | 73.0 | 101.0 | 130.0 | 170.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Prikazujem 1 do 8 od 8 zapisov
Opis
3-way ball valve, nickel-plated brass, Connection bottom, L-hole, Rp 1, DN 25, Operating temp. -15 °C to 120 °C, PN max. 16 bar
3-way ball valve with full throughput, integrated ISO flange plate (ISO 5211) and double-sided sealed ball.
Pressurisation is only possible via the lower connection.
Tehnični podatki in specifikacije
| Ohišje | Nickel-plated brass (CW617N) |
| Material navojev | Brass |
| Krogla | Nickel-plated brass (CW617N) |
| Krogelno tesnilo | PTFE |
| Stebelno tesnilo | PTFE / FKM |
| Ročica | Steel with plastic coating |
| Min. delovna temperatura [°C] | -15 |
| Max. delovna temperatura [°C] | 120 |
| Navoj | Rp 1 |
| DN | 25 |
| a/f [mm] | 41 |
| PN [bar] | 16 |
| Standardni navoj | Rp thread acc. to ISO 7-1 |
| A [mm] | 115.0 |
| B [mm] | 76.0 |
| L [mm] | 89.0 |
| E [mm] | 19.1 |
| H1 [mm] | 45.0 |
| H2 [mm] | 47.0 |
