* slike so simbolične

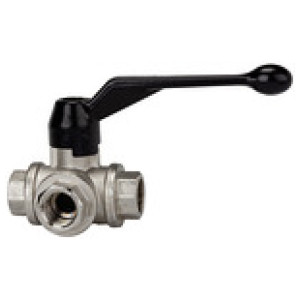

3-potni krogelni ventil, T-izpust, lahka izvedba, Rp 2
SKU: 103374RIE
EAN: 4047322275873
3-way ball valve, T-hole, standard type, nickel-plated brass, Medium/ambient temp. -15 °C to 100 °C, Rp 2, PN max. 16 bar
Sealing on all sides with T-bore.
The lever of this model can only be turned 90° rather than 360°.
Only two valve positions are therefore possible instead of four.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
3-potni krogelni ventil, T-izpust, lahka izvedba, Rp 2
Krogla: Nickel-plated brass
Material navojev: Nickel-plated brass
Ohišje: Nickel-plated brass
Ročica: Aluminium, painted black
Standardni navoj: Rp thread acc. to ISO 7-1
Vzmet: Stainless steel

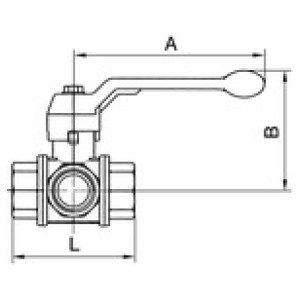

B [mm]: 141.0
L [mm]: 169.0
A [mm]: 235.0
Material navojev: Nickel-plated brass
Ohišje: Nickel-plated brass
Ročica: Aluminium, painted black
Standardni navoj: Rp thread acc. to ISO 7-1
Vzmet: Stainless steel
B [mm]: 141.0
L [mm]: 169.0
A [mm]: 235.0
| Šifra | Navoj | Bore inball | DN | Max. obratovalni tlak pri 20 ° C [bar] | E [mm] | C Ø [mm] | B [mm] | L [mm] | A [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 103371RIE | Rp 1 | 23 | 25 | 25 | 31.0 | 58.0 | 102.0 | 113.0 | 160.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 103369RIE | Rp 1/2 | 13 | 15 | 40 | 21.0 | 38.0 | 85.0 | 80.0 | 130.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 103370RIE | Rp 3/4 | 18 | 20 | 40 | 26.0 | 48.0 | 98.0 | 96.0 | 160.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 103372RIE | Rp 1 1/4 | 29 | 32 | 16 | 34.0 | 67.0 | 121.0 | 130.0 | 195.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 103374RIE | Rp 2 | 44 | 50 | 16 | 47.0 | 95.0 | 141.0 | 169.0 | 235.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 103373RIE | Rp 1 1/2 | 35 | 40 | 16 | 40.0 | 78.0 | 125.0 | 147.0 | 195.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
3-way ball valve, T-hole, standard type, nickel-plated brass, Medium/ambient temp. -15 °C to 100 °C, Rp 2, PN max. 16 bar
Sealing on all sides with T-bore.
The lever of this model can only be turned 90° rather than 360°.
Only two valve positions are therefore possible instead of four.
Tehnični podatki in specifikacije
| Ohišje | Nickel-plated brass |
| Tesnilo | PTFE |
| Min. temperatura medija [°C] | -15 |
| Max. temperatura medija [°C] | 100 |
| Min. sobna temperatura [°C] | -15 |
| Max. sobna temperatura [°C] | 100 |
| Material navojev | Nickel-plated brass |
| Krogla | Nickel-plated brass |
| Ročica | Aluminium, painted black |
| Vzmet | Stainless steel |
| Navoj | Rp 2 |
| DN | 50 |
| Standardni navoj | Rp thread acc. to ISO 7-1 |
| Bore inball | 44 |
| Max. obratovalni tlak pri 20 ° C [bar] | 16 |
| A [mm] | 235.0 |
| B [mm] | 141.0 |
| L [mm] | 169.0 |
| E [mm] | 47.0 |
| C Ø [mm] | 95.0 |
