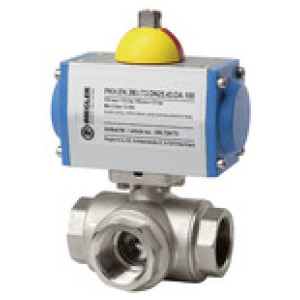

3-potni medenina krogelni ventil, Pneumat. vklop, L-izpust, Rp 1
SKU: 103556RIE
EAN: 4047322077064
3-way brass ball valve, Pneumat. actuation drive, L-hole, Operating temperature -20 °C to 70 °C, Rp 1, DN 25, PN max. 40 bar
3-way cock, L-bore or T-bore, full bore.
Pneumatic actuators, double- or single acting version and integrated end-position feedback.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
3-potni medenina krogelni ventil, Pneumat. vklop, L-izpust, Rp 1
Adapter ventila: Supplied as standard
Material krogelnega ventila: Nickel-plated brass, with ISO flange plate
Pogonski material: Anodised aluminium
Premaz za krogelni ventil: PTFE / FKM
Različica: single-acting
A [mm]: 133.0
B [mm]: 150.5
Material krogelnega ventila: Nickel-plated brass, with ISO flange plate
Pogonski material: Anodised aluminium
Premaz za krogelni ventil: PTFE / FKM
Različica: single-acting
A [mm]: 133.0
B [mm]: 150.5
| Šifra | Navoj | DN | D [mm] | PN [bar] | a/f [mm] | L [mm] | A [mm] | B [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 103556RIE | Rp 1 | 25 | 30.0 | 40 | 41 | 97.0 | 133.0 | 150.5 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 103557RIE | Rp 1 1/2 | 40 | 43.0 | 25 | 55 | 135.0 | 180.0 | 193.5 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 103555RIE | Rp 1/2 | 15 | 20.0 | 40 | 25 | 64.5 | 133.0 | 142.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
3-way brass ball valve, Pneumat. actuation drive, L-hole, Operating temperature -20 °C to 70 °C, Rp 1, DN 25, PN max. 40 bar
3-way cock, L-bore or T-bore, full bore.
Pneumatic actuators, double- or single acting version and integrated end-position feedback.
Tehnični podatki in specifikacije
| Pogonski material | Anodised aluminium |
| Max. vodeni tlak aktuatorja [bar] | 10 |
| Priporočeni vodeni tlak [bar] | 5.5 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 70 |
| Material krogelnega ventila | Nickel-plated brass, with ISO flange plate |
| Premaz za krogelni ventil | PTFE / FKM |
| Premaz za pogon | NBR |
| Kot vrtenja [°] | 90 |
| Adapter ventila | Supplied as standard |
| Navoj | Rp 1 |
| DN | 25 |
| Različica | single-acting |
| Položaj | L 2 |
| B [mm] | 150.5 |
| L [mm] | 97.0 |
| A [mm] | 133.0 |
| D [mm] | 30.0 |
| a/f [mm] | 41 |
| PN [bar] | 40 |
