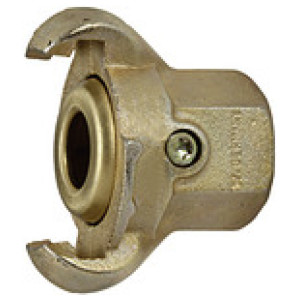

Čeljustni spoj z notranjim navojem, G 1, z tesnilom , Medenina
SKU: 107864RIE
EAN: 4047322259163
Jaw coupling with IT, G 1, with brass seal, Malleable cast iron, galvanised and yellow passivated, Operating pressure max. 10 bar
"Universal standard coupling for compressed air lines on construction sites or in industry
Šifra | Navoj | a/f [mm] | L [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|
107862RIE | G 1/2 | 32 | 51.9 | Čas dobave: Predvidoma 3 - 5 dni | 17,02 € | | |
107863RIE | G 3/4 | 32 | 48.0 | Čas dobave: Predvidoma 3 - 5 dni | 13,74 € | | |
107864RIE | G 1 | 41 | 50.9 | Čas dobave: Predvidoma 3 - 5 dni | 20,61 € | |
Opis
Jaw coupling with IT, G 1, with brass seal, Malleable cast iron, galvanised and yellow passivated, Operating pressure max. 10 bar
"Universal standard coupling for compressed air lines on construction sites or in industry
Tehnični podatki in specifikacije
DN | 17 |
Max. obratovalni tlak [bar] | 10 |
Min. delovna temperatura [°C] | -40 |
Max. delovna temperatura [°C] | 95 |
Navoj | G 1 |
a/f [mm] | 41 |
Tesnilo | NBR |
Material | Malleable iron, zinc plated and yellow chromated |
Razdalja med objemkami [mm] | 42 |
L [mm] | 50.9 |
H [mm] | 63.0 |
