Cilinder kratkega hoda,delujoč v dveh smerehbat Ø 12hod 40M5
SKU: 105900RIE
EAN: 2120120040CN

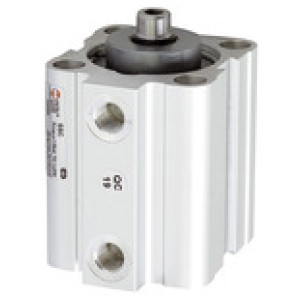

Short stroke cylinder, double-acting, Magnet, Piston Ø 12, Stroke 40, M5, Working pressure max. 10 bar, Temp. -10 °C to 80 °C
Suitable for installation in limited spaces.
Supplied with magnet.
Suitable for filtered compressed air, lubricated (ensure continuity) or unlubricated.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Cilinder kratkega hoda,delujoč v dveh smerehbat Ø 12hod 40M5
Bat: Synthetic (acetal) resin
Batnica: C45 steel, hard chrome-plated
Cushioning: non-cushioned

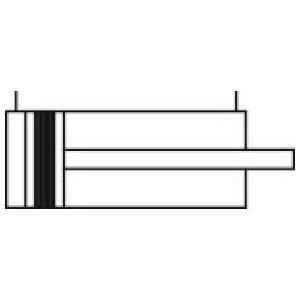

Ffunkcija: double-acting
Gewinde Kolbenstange: female piston rod
Glava: Painted brass
Magnet: with magnet
Ovoj: C45 steel, hard chrome-plated
Tesnilo batnice: NBR (additional charge for PU and FKM)
Batnica: C45 steel, hard chrome-plated
Cushioning: non-cushioned
Ffunkcija: double-acting
Gewinde Kolbenstange: female piston rod
Glava: Painted brass
Magnet: with magnet
Ovoj: C45 steel, hard chrome-plated
Tesnilo batnice: NBR (additional charge for PU and FKM)
Aktivni filtri - 0
| Šifra | Bat | Batnica IT | Glava | Ovoj | Povezava | Min. nastavljeni tlak [bar] | Bat Ø [mm] | Stroke [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 105896RIE | Synthetic (acetal) resin | M3 | Painted brass | Aluminum alloy, anodised | M5 | 0.6 | 12 | 5 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 105897RIE | Synthetic (acetal) resin | M3 | Painted brass | C45 steel, hard chrome-plated | M5 | 0.6 | 12 | 10 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 105898RIE | Synthetic (acetal) resin | M3 | Painted brass | C45 steel, hard chrome-plated | M5 | 0.6 | 12 | 25 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 105899RIE | Synthetic (acetal) resin | M3 | Painted brass | C45 steel, hard chrome-plated | M5 | 0.6 | 12 | 30 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 105900RIE | Synthetic (acetal) resin | M3 | Painted brass | C45 steel, hard chrome-plated | M5 | 0.6 | 12 | 40 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 105901RIE | Synthetic (acetal) resin | M5 | Painted brass | C45 steel, hard chrome-plated | M5 | 0.6 | 16 | 5 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 105902RIE | Synthetic (acetal) resin | M5 | Painted brass | C45 steel, hard chrome-plated | M5 | 0.6 | 16 | 10 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 105903RIE | Synthetic (acetal) resin | M5 | Painted brass | C45 steel, hard chrome-plated | M5 | 0.6 | 16 | 25 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 105904RIE | Synthetic (acetal) resin | M5 | Painted brass | C45 steel, hard chrome-plated | M5 | 0.6 | 16 | 30 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 105905RIE | Synthetic (acetal) resin | M5 | Painted brass | C45 steel, hard chrome-plated | M5 | 0.6 | 16 | 40 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Prikazujem 1 do 10 od 56 zapisov
Opis
Short stroke cylinder, double-acting, Magnet, Piston Ø 12, Stroke 40, M5, Working pressure max. 10 bar, Temp. -10 °C to 80 °C
Suitable for installation in limited spaces.
Supplied with magnet.
Suitable for filtered compressed air, lubricated (ensure continuity) or unlubricated.
Tehnični podatki in specifikacije
| Min. nastavljeni tlak [bar] | 0.6 |
| Magnet | with magnet |
| Ffunkcija | double-acting |
| Cushioning | non-cushioned |
| Gewinde Kolbenstange | female piston rod |
| Max. delovni tlak [bar] | 10 |
| Min. temperaturno območje [°C] | -10 |
| Max. temperaturno območje [°C] | 80 |
| Ovoj | C45 steel, hard chrome-plated |
| Tesnilo batnice | NBR (additional charge for PU and FKM) |
| Bat Ø [mm] | 12 |
| Stroke [mm] | 40 |
| Povezava | M5 |
| Batnica | C45 steel, hard chrome-plated |
| Batnica IT | M3 |
| Bat | Synthetic (acetal) resin |
| Glava | Painted brass |
