Cilinder s kratkim hodom del. v dveh smereh bat Ø 25hod 45M5x0,8
SKU: 115089RIE
EAN: 4047322317795

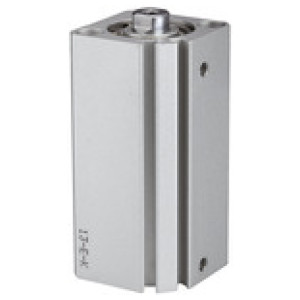

Short stroke cylinder »ACQ« double-acting, Magnet, Piston Ø 25, Stroke 45, M5x0,8, Working pressure 1-10 bar, Temp. -20°C to 70°C
Suitable for installation in limited spaces.
Supplied with magnet.
Short-stroke cylinders in two different versions:
»ACQ« Series, double-acting, Ø 12 to 100
»ASQ« Series, single-acting, Ø 12 to 63
Suitable for filtered, unlubricated or lubricated compressed air.
If lubrication is used, it must be continuous.
Čas dobave 3 - 5 dni
82,08 €
65,66 €
ali od 11,77 € / mesec
Izračunaj obrok
Obrestno financiranje
- 11,77 € x 6 mesecev
- 23,31 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Bat | Batnica IT | Povezava | Vrsta | Batnica Ø [mm] | Bat Ø [mm] | Stroke [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 115101RIE | Aluminium | M8x1.25 | G 1/8 | 3 | 16 | 32 | 35 | Čas dobave 3 - 5 dni | 70,72 € |  | |
| 115092RIE | Aluminium | M6x1.0 | M5x0.8 | 2 | 12 | 25 | 60 | Čas dobave 3 - 5 dni | 66,46 € | | |
| 115036RIE | Aluminium | M20x2.5 | G 3/8 | 3 | 32 | 100 | 20 | Čas dobave 3 - 5 dni | 215,90 € | | |
| 115124RIE | Aluminium | M10x1.5 | G 1/4 | 3 | 20 | 50 | 5 | Čas dobave 3 - 5 dni | 81,86 € | | |
| 115085RIE | Aluminium | M6x1.0 | M5x0.8 | 2 | 12 | 25 | 25 | Čas dobave 3 - 5 dni | 64,38 € | | |
| 115157RIE | Aluminium | M16x2.0 | G 3/8 | 3 | 25 | 80 | 35 | Čas dobave 3 - 5 dni | 166,28 € | | |
| 115086RIE | Aluminium | M6x1.0 | M5x0.8 | 2 | 12 | 25 | 30 | Čas dobave 3 - 5 dni | 64,74 € | | |
| 115080RIE | Aluminium | M5x0.8 | M5x0.8 | 2 | 10 | 20 | 75 | Čas dobave 3 - 5 dni | 62,94 € | | |
| 115065RIE | Messing | M4x0.7 | M5x0.8 | 1 | 8 | 16 | 50 | Čas dobave 3 - 5 dni | 60,10 € | | |
| 115090RIE | Aluminium | M6x1.0 | M5x0.8 | 2 | 12 | 25 | 50 | Čas dobave 3 - 5 dni | 65,92 € | | |
| 115034RIE | Aluminium | M20x2.5 | G 3/8 | 3 | 32 | 100 | 5 | Čas dobave 3 - 5 dni | 202,05 € | | |
| 115064RIE | Messing | M4x0.7 | M5x0.8 | 1 | 8 | 16 | 45 | Čas dobave 3 - 5 dni | 59,85 € | | |
| 115055RIE | Messing | M3x0.5 | M5x0.8 | 1 | 6 | 12 | 45 | Čas dobave 3 - 5 dni | 57,11 € | | |
| 115053RIE | Messing | M3x0.5 | M5x0.8 | 1 | 6 | 12 | 35 | Čas dobave 3 - 5 dni | 56,60 € | | |
| 115041RIE | Aluminium | M20x2.5 | G 3/8 | 3 | 32 | 100 | 45 | Čas dobave 3 - 5 dni | 239,22 € | | |
| 115121RIE | Aluminium | M8x1.25 | G 1/8 | 3 | 16 | 40 | 70 | Čas dobave 3 - 5 dni | 81,35 € | | |
| 115162RIE | Aluminium | M16x2.0 | G 3/8 | 3 | 25 | 80 | 60 | Čas dobave 3 - 5 dni | 175,50 € | | |
| 115140RIE | Aluminium | M10x1.5 | G 1/4 | 3 | 20 | 63 | 20 | Čas dobave 3 - 5 dni | 103,34 € | | |
| 115083RIE | Aluminium | M6x1.0 | M5x0.8 | 2 | 12 | 25 | 10 | Čas dobave 3 - 5 dni | 62,94 € | | |
| 115147RIE | Aluminium | M10x1.5 | G 1/4 | 3 | 20 | 63 | 55 | Čas dobave 3 - 5 dni | 110,34 € | | |
| 115091RIE | Aluminium | M6x1.0 | M5x0.8 | 2 | 12 | 25 | 55 | Čas dobave 3 - 5 dni | 66,18 € | | |
| 115073RIE | Aluminium | M5x0.8 | M5x0.8 | 2 | 10 | 20 | 35 | Čas dobave 3 - 5 dni | 61,40 € | | |
| 115116RIE | Aluminium | M8x1.25 | G 1/8 | 3 | 16 | 40 | 40 | Čas dobave 3 - 5 dni | 75,25 € | | |
| 115078RIE | Aluminium | M5x0.8 | M5x0.8 | 2 | 10 | 20 | 60 | Čas dobave 3 - 5 dni | 62,68 € | | |
| 115118RIE | Aluminium | M8x1.25 | G 1/8 | 3 | 16 | 40 | 50 | Čas dobave 3 - 5 dni | 76,43 € | | |
| 115128RIE | Aluminium | M10x1.5 | G 1/4 | 3 | 20 | 50 | 30 | Čas dobave 3 - 5 dni | 85,74 € | | |
| 115138RIE | Aluminium | M10x1.5 | G 1/4 | 3 | 20 | 63 | 5 | Čas dobave 3 - 5 dni | 100,65 € | | |
| 115146RIE | Aluminium | M10x1.5 | G 1/4 | 3 | 20 | 63 | 50 | Čas dobave 3 - 5 dni | 109,18 € | | |
| 115096RIE | Aluminium | M8x1.25 | G 1/8 | 3 | 16 | 32 | 5 | Čas dobave 3 - 5 dni | 68,13 € | | |
| 115039RIE | Aluminium | M20x2.5 | G 3/8 | 3 | 32 | 100 | 35 | Čas dobave 3 - 5 dni | 230,04 € | | |
| 115038RIE | Aluminium | M20x2.5 | G 3/8 | 3 | 32 | 100 | 30 | Čas dobave 3 - 5 dni | 225,37 € | | |
| 115042RIE | Aluminium | M20x2.5 | G 3/8 | 3 | 32 | 100 | 50 | Čas dobave 3 - 5 dni | 244,00 € | | |
| 115081RIE | Aluminium | M5x0.8 | M5x0.8 | 2 | 10 | 20 | 80 | Čas dobave 3 - 5 dni | 62,94 € | | |
| 115120RIE | Aluminium | M8x1.25 | G 1/8 | 3 | 16 | 40 | 60 | Čas dobave 3 - 5 dni | 79,02 € | | |
| 115045RIE | Aluminium | M20x2.5 | G 3/8 | 3 | 32 | 100 | 70 | Čas dobave 3 - 5 dni | 275,88 € | | |
| 115108RIE | Aluminium | M8x1.25 | G 1/8 | 3 | 16 | 32 | 75 | Čas dobave 3 - 5 dni | 83,66 € | | |
| 115156RIE | Aluminium | M16x2.0 | G 3/8 | 3 | 25 | 80 | 30 | Čas dobave 3 - 5 dni | 164,87 € | | |
| 115066RIE | Messing | M4x0.7 | M5x0.8 | 1 | 8 | 16 | 55 | Čas dobave 3 - 5 dni | 60,10 € | | |
| 115148RIE | Aluminium | M10x1.5 | G 1/4 | 3 | 20 | 63 | 60 | Čas dobave 3 - 5 dni | 112,45 € | | |
| 115057RIE | Messing | M4x0.7 | M5x0.8 | 1 | 8 | 16 | 5 | Čas dobave 3 - 5 dni | 58,79 € | | |
| 115074RIE | Aluminium | M5x0.8 | M5x0.8 | 2 | 10 | 20 | 40 | Čas dobave 3 - 5 dni | 61,78 € | | |
| 115126RIE | Aluminium | M10x1.5 | G 1/4 | 3 | 20 | 50 | 20 | Čas dobave 3 - 5 dni | 84,06 € | | |
| 115159RIE | Aluminium | M16x2.0 | G 3/8 | 3 | 25 | 80 | 45 | Čas dobave 3 - 5 dni | 169,03 € | | |
| 115164RIE | Aluminium | M16x2.0 | G 3/8 | 3 | 25 | 80 | 75 | Čas dobave 3 - 5 dni | 180,42 € | | |
| 115155RIE | Aluminium | M16x2.0 | G 3/8 | 3 | 25 | 80 | 25 | Čas dobave 3 - 5 dni | 163,32 € | | |
| 115104RIE | Aluminium | M8x1.25 | G 1/8 | 3 | 16 | 32 | 50 | Čas dobave 3 - 5 dni | 72,26 € | | |
| 115131RIE | Aluminium | M10x1.5 | G 1/4 | 3 | 20 | 50 | 45 | Čas dobave 3 - 5 dni | 88,08 € | | |
| 115082RIE | Aluminium | M6x1.0 | M5x0.8 | 2 | 12 | 25 | 5 | Čas dobave 3 - 5 dni | 62,68 € | | |
| 115070RIE | Aluminium | M5x0.8 | M5x0.8 | 2 | 10 | 20 | 20 | Čas dobave 3 - 5 dni | 61,01 € | | |
| 115136RIE | Aluminium | M10x1.5 | G 1/4 | 3 | 20 | 50 | 75 | Čas dobave 3 - 5 dni | 93,25 € | | |
| 115113RIE | Aluminium | M8x1.25 | G 1/8 | 3 | 16 | 40 | 25 | Čas dobave 3 - 5 dni | 73,69 € | | |
| 115112RIE | Aluminium | M8x1.25 | G 1/8 | 3 | 16 | 40 | 20 | Čas dobave 3 - 5 dni | 72,52 € | | |
| 115084RIE | Aluminium | M6x1.0 | M5x0.8 | 2 | 12 | 25 | 20 | Čas dobave 3 - 5 dni | 63,61 € | | |
| 115163RIE | Aluminium | M16x2.0 | G 3/8 | 3 | 25 | 80 | 70 | Čas dobave 3 - 5 dni | 177,98 € | | |
| 115094RIE | Aluminium | M6x1.0 | M5x0.8 | 2 | 12 | 25 | 75 | Čas dobave 3 - 5 dni | 66,96 € | | |
| 115069RIE | Aluminium | M5x0.8 | M5x0.8 | 2 | 10 | 20 | 10 | Čas dobave 3 - 5 dni | 59,97 € | | |
| 115149RIE | Aluminium | M10x1.5 | G 1/4 | 3 | 20 | 63 | 70 | Čas dobave 3 - 5 dni | 114,11 € | | |
| 115130RIE | Aluminium | M10x1.5 | G 1/4 | 3 | 20 | 50 | 40 | Čas dobave 3 - 5 dni | 87,30 € | | |
| 115160RIE | Aluminium | M16x2.0 | G 3/8 | 3 | 25 | 80 | 50 | Čas dobave 3 - 5 dni | 170,70 € | | |
| 115154RIE | Aluminium | M16x2.0 | G 3/8 | 3 | 25 | 80 | 20 | Čas dobave 3 - 5 dni | 161,13 € | | |
| 115044RIE | Aluminium | M20x2.5 | G 3/8 | 3 | 32 | 100 | 60 | Čas dobave 3 - 5 dni | 258,78 € | | |
| 115075RIE | Aluminium | M5x0.8 | M5x0.8 | 2 | 10 | 20 | 45 | Čas dobave 3 - 5 dni | 61,78 € | | |
| 115109RIE | Aluminium | M8x1.25 | G 1/8 | 3 | 16 | 32 | 80 | Čas dobave 3 - 5 dni | 86,51 € | | |
| 115048RIE | Messing | M3x0.5 | M5x0.8 | 1 | 6 | 12 | 5 | Čas dobave 3 - 5 dni | 55,56 € | | |
| 115127RIE | Aluminium | M10x1.5 | G 1/4 | 3 | 20 | 50 | 25 | Čas dobave 3 - 5 dni | 108,18 € | | |
| 115046RIE | Aluminium | M20x2.5 | G 3/8 | 3 | 32 | 100 | 75 | Čas dobave 3 - 5 dni | 279,64 € | | |
| 115047RIE | Aluminium | M20x2.5 | G 3/8 | 3 | 32 | 100 | 80 | Čas dobave 3 - 5 dni | 285,45 € | | |
| 115087RIE | Aluminium | M6x1.0 | M5x0.8 | 2 | 12 | 25 | 35 | Čas dobave 3 - 5 dni | 65,04 € | | |
| 115052RIE | Messing | M3x0.5 | M5x0.8 | 1 | 6 | 12 | 30 | Čas dobave 3 - 5 dni | 56,60 € | | |
| 115063RIE | Messing | M4x0.7 | M5x0.8 | 1 | 8 | 16 | 40 | Čas dobave 3 - 5 dni | 59,85 € | | |
| 115125RIE | Aluminium | M10x1.5 | G 1/4 | 3 | 20 | 50 | 10 | Čas dobave 3 - 5 dni | 82,89 € | | |
| 115141RIE | Aluminium | M10x1.5 | G 1/4 | 3 | 20 | 63 | 25 | Čas dobave 3 - 5 dni | 104,39 € | | |
| 115077RIE | Aluminium | M5x0.8 | M5x0.8 | 2 | 10 | 20 | 55 | Čas dobave 3 - 5 dni | 62,45 € | | |
| 115059RIE | Messing | M4x0.7 | M5x0.8 | 1 | 8 | 16 | 20 | Čas dobave 3 - 5 dni | 59,33 € | | |
| 115097RIE | Aluminium | M8x1.25 | G 1/8 | 3 | 16 | 32 | 10 | Čas dobave 3 - 5 dni | 68,51 € | | |
| 115058RIE | Messing | M4x0.7 | M5x0.8 | 1 | 8 | 16 | 10 | Čas dobave 3 - 5 dni | 58,79 € | | |
| 115142RIE | Aluminium | M10x1.5 | G 1/4 | 3 | 20 | 63 | 30 | Čas dobave 3 - 5 dni | 105,42 € | | |
| 115132RIE | Aluminium | M10x1.5 | G 1/4 | 3 | 20 | 50 | 50 | Čas dobave 3 - 5 dni | 88,86 € | | |
| 115037RIE | Aluminium | M20x2.5 | G 3/8 | 3 | 32 | 100 | 25 | Čas dobave 3 - 5 dni | 220,30 € | | |
| 115102RIE | Aluminium | M8x1.25 | G 1/8 | 3 | 16 | 32 | 40 | Čas dobave 3 - 5 dni | 71,38 € | | |
| 115152RIE | Aluminium | M16x2.0 | G 3/8 | 3 | 25 | 80 | 5 | Čas dobave 3 - 5 dni | 157,36 € | | |
| 115137RIE | Aluminium | M10x1.5 | G 1/4 | 3 | 20 | 50 | 80 | Čas dobave 3 - 5 dni | 94,80 € | | |
| 115151RIE | Aluminium | M10x1.5 | G 1/4 | 3 | 20 | 63 | 80 | Čas dobave 3 - 5 dni | 117,61 € | | |
| 115144RIE | Aluminium | M10x1.5 | G 1/4 | 3 | 20 | 63 | 40 | Čas dobave 3 - 5 dni | 107,24 € | | |
| 115054RIE | Messing | M3x0.5 | M5x0.8 | 1 | 6 | 12 | 40 | Čas dobave 3 - 5 dni | 57,11 € | | |
| 115076RIE | Aluminium | M5x0.8 | M5x0.8 | 2 | 10 | 20 | 50 | Čas dobave 3 - 5 dni | 62,45 € | | |
| 115135RIE | Aluminium | M10x1.5 | G 1/4 | 3 | 20 | 50 | 70 | Čas dobave 3 - 5 dni | 91,96 € | | |
| 115123RIE | Aluminium | M8x1.25 | G 1/8 | 3 | 16 | 40 | 80 | Čas dobave 3 - 5 dni | 82,89 € | | |
| 115043RIE | Aluminium | M20x2.5 | G 3/8 | 3 | 32 | 100 | 55 | Čas dobave 3 - 5 dni | 252,95 € | | |
| 115107RIE | Aluminium | M8x1.25 | G 1/8 | 3 | 16 | 32 | 70 | Čas dobave 3 - 5 dni | 78,50 € | | |
| 115095RIE | Aluminium | M6x1.0 | M5x0.8 | 2 | 12 | 25 | 80 | Čas dobave 3 - 5 dni | 67,22 € | | |
| 115110RIE | Aluminium | M8x1.25 | G 1/8 | 3 | 16 | 40 | 5 | Čas dobave 3 - 5 dni | 71,49 € | | |
| 115035RIE | Aluminium | M20x2.5 | G 3/8 | 3 | 32 | 100 | 10 | Čas dobave 3 - 5 dni | 206,96 € | | |
| 115161RIE | Aluminium | M16x2.0 | G 3/8 | 3 | 25 | 80 | 55 | Čas dobave 3 - 5 dni | 172,66 € | | |
| 115056RIE | Messing | M3x0.5 | M5x0.8 | 1 | 6 | 12 | 50 | Čas dobave 3 - 5 dni | 57,11 € | | |
| 115122RIE | Aluminium | M8x1.25 | G 1/8 | 3 | 16 | 40 | 75 | Čas dobave 3 - 5 dni | 82,13 € | | |
| 115134RIE | Aluminium | M10x1.5 | G 1/4 | 3 | 20 | 50 | 60 | Čas dobave 3 - 5 dni | 90,67 € | | |
| 115072RIE | Aluminium | M5x0.8 | M5x0.8 | 2 | 10 | 20 | 30 | Čas dobave 3 - 5 dni | 61,40 € | | |
| 115150RIE | Aluminium | M10x1.5 | G 1/4 | 3 | 20 | 63 | 75 | Čas dobave 3 - 5 dni | 115,79 € | | |
| 115071RIE | Aluminium | M5x0.8 | M5x0.8 | 2 | 10 | 20 | 25 | Čas dobave 3 - 5 dni | 61,01 € | | |
| 115060RIE | Messing | M4x0.7 | M5x0.8 | 1 | 8 | 16 | 25 | Čas dobave 3 - 5 dni | 59,33 € | | |
| 115061RIE | Messing | M4x0.7 | M5x0.8 | 1 | 8 | 16 | 30 | Čas dobave 3 - 5 dni | 59,58 € | | |
| 115117RIE | Aluminium | M8x1.25 | G 1/8 | 3 | 16 | 40 | 45 | Čas dobave 3 - 5 dni | 75,76 € | | |
| 115049RIE | Messing | M3x0.5 | M5x0.8 | 1 | 6 | 12 | 10 | Čas dobave 3 - 5 dni | 55,56 € | | |
| 115145RIE | Aluminium | M10x1.5 | G 1/4 | 3 | 20 | 63 | 45 | Čas dobave 3 - 5 dni | 108,15 € | | |
| 115106RIE | Aluminium | M8x1.25 | G 1/8 | 3 | 16 | 32 | 60 | Čas dobave 3 - 5 dni | 76,16 € | | |
| 115153RIE | Aluminium | M16x2.0 | G 3/8 | 3 | 25 | 80 | 10 | Čas dobave 3 - 5 dni | 158,91 € | | |
| 115114RIE | Aluminium | M8x1.25 | G 1/8 | 3 | 16 | 40 | 30 | Čas dobave 3 - 5 dni | 74,08 € | | |
| 115119RIE | Aluminium | M8x1.25 | G 1/8 | 3 | 16 | 40 | 55 | Čas dobave 3 - 5 dni | 78,22 € | | |
| 115103RIE | Aluminium | M8x1.25 | G 1/8 | 3 | 16 | 32 | 45 | Čas dobave 3 - 5 dni | 71,88 € | | |
| 115099RIE | Aluminium | M8x1.25 | G 1/8 | 3 | 16 | 32 | 25 | Čas dobave 3 - 5 dni | 70,06 € | | |
| 115093RIE | Aluminium | M6x1.0 | M5x0.8 | 2 | 12 | 25 | 70 | Čas dobave 3 - 5 dni | 66,71 € | | |
| 115050RIE | Messing | M3x0.5 | M5x0.8 | 1 | 6 | 12 | 20 | Čas dobave 3 - 5 dni | 56,34 € | | |
| 115062RIE | Messing | M4x0.7 | M5x0.8 | 1 | 8 | 16 | 35 | Čas dobave 3 - 5 dni | 59,58 € | | |
| 115088RIE | Aluminium | M6x1.0 | M5x0.8 | 2 | 12 | 25 | 40 | Čas dobave 3 - 5 dni | 65,41 € | | |
| 115068RIE | Aluminium | M5x0.8 | M5x0.8 | 2 | 10 | 20 | 5 | Čas dobave 3 - 5 dni | 59,97 € | | |
| 115158RIE | Aluminium | M16x2.0 | G 3/8 | 3 | 25 | 80 | 40 | Čas dobave 3 - 5 dni | 167,86 € | | |
| 115105RIE | Aluminium | M8x1.25 | G 1/8 | 3 | 16 | 32 | 55 | Čas dobave 3 - 5 dni | 75,38 € | | |
| 115111RIE | Aluminium | M8x1.25 | G 1/8 | 3 | 16 | 40 | 10 | Čas dobave 3 - 5 dni | 72,02 € | | |
| 115098RIE | Aluminium | M8x1.25 | G 1/8 | 3 | 16 | 32 | 20 | Čas dobave 3 - 5 dni | 69,42 € | | |
| 115115RIE | Aluminium | M8x1.25 | G 1/8 | 3 | 16 | 40 | 35 | Čas dobave 3 - 5 dni | 74,62 € | | |
| 115143RIE | Aluminium | M10x1.5 | G 1/4 | 3 | 20 | 63 | 35 | Čas dobave 3 - 5 dni | 106,33 € | | |
| 115129RIE | Aluminium | M10x1.5 | G 1/4 | 3 | 20 | 50 | 35 | Čas dobave 3 - 5 dni | 86,51 € | | |
| 115079RIE | Aluminium | M5x0.8 | M5x0.8 | 2 | 10 | 20 | 70 | Čas dobave 3 - 5 dni | 62,68 € | | |
| 115051RIE | Messing | M3x0.5 | M5x0.8 | 1 | 6 | 12 | 25 | Čas dobave 3 - 5 dni | 56,34 € | | |
| 115165RIE | Aluminium | M16x2.0 | G 3/8 | 3 | 25 | 80 | 80 | Čas dobave 3 - 5 dni | 184,96 € | | |
| 115100RIE | Aluminium | M8x1.25 | G 1/8 | 3 | 16 | 32 | 30 | Čas dobave 3 - 5 dni | 70,46 € | | |
| 115067RIE | Messing | M4x0.7 | M5x0.8 | 1 | 8 | 16 | 60 | Čas dobave 3 - 5 dni | 60,35 € | | |
| 115139RIE | Aluminium | M10x1.5 | G 1/4 | 3 | 20 | 63 | 10 | Čas dobave 3 - 5 dni | 101,67 € | | |
| 115040RIE | Aluminium | M20x2.5 | G 3/8 | 3 | 32 | 100 | 40 | Čas dobave 3 - 5 dni | 234,30 € | | |
| 115133RIE | Aluminium | M10x1.5 | G 1/4 | 3 | 20 | 50 | 55 | Čas dobave 3 - 5 dni | 89,61 € | | |
| 115089RIE | Aluminium | M6x1.0 | M5x0.8 | 2 | 12 | 25 | 45 | Čas dobave 3 - 5 dni | 65,66 € | |
Opis
Short stroke cylinder »ACQ« double-acting, Magnet, Piston Ø 25, Stroke 45, M5x0,8, Working pressure 1-10 bar, Temp. -20°C to 70°C
Suitable for installation in limited spaces.
Supplied with magnet.
Short-stroke cylinders in two different versions:
»ACQ« Series, double-acting, Ø 12 to 100
»ASQ« Series, single-acting, Ø 12 to 63
Suitable for filtered, unlubricated or lubricated compressed air.
If lubrication is used, it must be continuous.
Tehnični podatki in specifikacije
| Magnet | with magnet |
| Ffunkcija | double-acting |
| Serija | ACQ series |
| Cushioning | non-cushioned |
| Gewinde Kolbenstange | female piston rod |
| Min. delovni tlak [bar] | 1 |
| Max. delovni tlak [bar] | 10 |
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 70 |
| Tesnilo | NBR |
| Ovoj | Aluminium |
| Bat Ø [mm] | 25 |
| Stroke [mm] | 45 |
| Povezava | M5x0.8 |
| Batnica | Steel, thick-chromed |
| Batnica IT | M6x1.0 |
| Batnica Ø [mm] | 12 |
| Bat | Aluminium |
| Vrsta | 2 |
