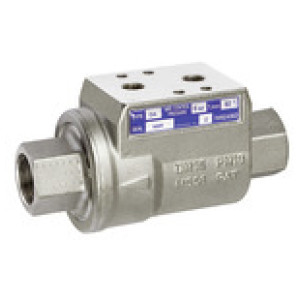

Coaxial valve pneumat. actuated, single-acting NC, FKM, Rp 2  slika
Coaxial valve pneumat. actuated, single-acting NC, FKM, Rp 2  slika

* slike so simbolične

Coaxial valve pneumat. actuated, single-acting NC, FKM, Rp 2

SKU: 133399RIE
EAN: 4047322477963

Coaxial valve pneumat. actuated, single-acting, NC, nickel-plated brass, Temp. -20°C to 150°C, Control pressure 4.2-8 bar, Rp 2

2/2-way coaxial valves, specially designed for automated industrial plant engineering.

A low-price, compact, space-saving and reliable alternative to ball valves with a pneumatic rotary actuator.

These valves have a full bore and - owing to the optimised design - only minimal flow losses.

They are controlled by means of filtered compressed air.

Čas dobave: Predvidoma 3 - 5 dni
629,72 €
ali od 16,78 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 16,78 € x 48 mesecev
  • 21,44 € x 36 mesecev
  • 30,80 € x 24 mesecev
  • 58,95 € x 12 mesecev
  • 115,32 € x 6 mesecev
  • 228,08 € x 3 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi

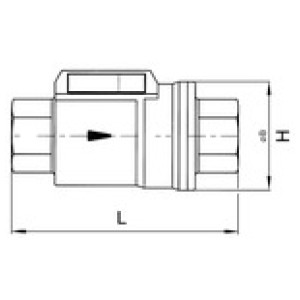

Šifra Navoj DN H [mm] L [mm] Zaloga Cena Nakup Natisni
103738RIE Rp 1 25 69.0 143.0
Čas dobave: Predvidoma 3 - 5 dni
262,43 € Natisni
103737RIE Rp 3/4 20 63.5 135.0
Čas dobave: Predvidoma 3 - 5 dni
227,20 € Natisni
103735RIE Rp 3/8 10 46.0 98.0
Čas dobave: Predvidoma 3 - 5 dni
181,12 € Natisni
103736RIE Rp 1/2 15 51.7 112.0
Čas dobave: Predvidoma 3 - 5 dni
199,46 € Natisni
133397RIE Rp 1 1/4 32 86.0 165.0
Čas dobave: Predvidoma 3 - 5 dni
357,18 € Natisni
133398RIE Rp 1 1/2 40 96.0 180.0
Čas dobave: Predvidoma 3 - 5 dni
446,79 € Natisni
133399RIE Rp 2 50 109.0 207.0
Čas dobave: Predvidoma 3 - 5 dni
629,72 € Natisni

Opis

Coaxial valve pneumat. actuated, single-acting, NC, nickel-plated brass, Temp. -20°C to 150°C, Control pressure 4.2-8 bar, Rp 2

2/2-way coaxial valves, specially designed for automated industrial plant engineering.

A low-price, compact, space-saving and reliable alternative to ball valves with a pneumatic rotary actuator.

These valves have a full bore and - owing to the optimised design - only minimal flow losses.

They are controlled by means of filtered compressed air.

Tehnični podatki in specifikacije

Ohišje Nickel-plated brass
Max. obratovalni tlak [bar] 10
Min. delovna temperatura [°C] -20
Max. delovna temperatura [°C] 150
Povezava NAMUR interface, direct: 2 x G 1/8
Navoj Rp 2
Notranji deli Nickel-plated brass
Vzmet Stainless steel
Vgradni položaj Any
Različica single-acting - spring to close
Tesnilo FKM
Min. vodeni tlak [bar] 4.2
Max. vodeni tlak [bar] 8
DN 50
H [mm] 109.0
L [mm] 207.0
