Dekabon cev, cev-O: 10x6.2 mm, črna, rola 25 m slika
 Dekabon cev, cev-O: 10x6.2 mm, črna, rola 25 m slika

* slike so simbolične

Dekabon cev, cev-O: 10x6.2 mm, črna, rola 25 m

SKU: 141362RIE
EAN: 4047322550222

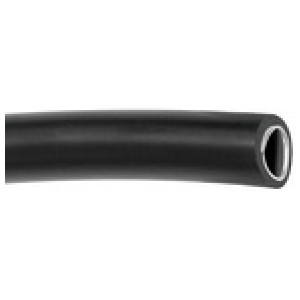

Dekabon tube, Tube-Ø: 10x6.2 mm, PN at 23 °C max. 28.8 bar, Temp. -40 °C to 80 °C, black, Roll of 25 m

Dekabon tubing, which combines the advantages of metal and plastic tubing.

Bending the very light tubing is possible without special tools. Good resistance against corrosion and various chemicals. The interior tube remains dry due to a film/aluminium barrier and can be laid in the ground without additional protection.

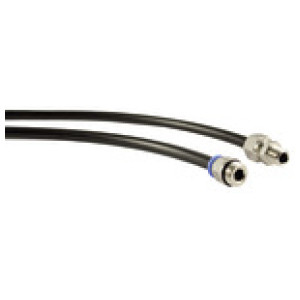

Connection is possible with push-in connectors (additional self testing) and cutting ring fittings (amplification sleeve recommended).

Areas of application:

- pneumatic measurement and control lines in very wet or moist environments

- air and gas sampling

- aggressive environments (corrosion)

- The interior surface is best suited for air

Čas dobave 3 - 5 dni
14,86 €
Primerjaj z ostalimi
Šifra I.D. cevi [mm] O.D. cevi [mm] Min. polmer upogibanja [mm] Max. obratovalni tlak pri 23 ° C [bar] Zaloga Cena Nakup Natisni
141353RIE 4 6 19 28
Čas dobave 3 - 5 dni
6,00 € Natisni
141370RIE 9.75 14 50 24
Čas dobave 3 - 5 dni
27,56 € Natisni
141357RIE 5.3 8 25 28
Čas dobave 3 - 5 dni
9,38 € Natisni
141362RIE 6.2 10 32 28
Čas dobave 3 - 5 dni
14,86 € Natisni
141366RIE 8.13 12 40 24
Čas dobave 3 - 5 dni
19,17 € Natisni
141373RIE 10.75 15 50 20
Čas dobave 3 - 5 dni
28,62 € Natisni

Opis

Dekabon tube, Tube-Ø: 10x6.2 mm, PN at 23 °C max. 28.8 bar, Temp. -40 °C to 80 °C, black, Roll of 25 m

Dekabon tubing, which combines the advantages of metal and plastic tubing.

Bending the very light tubing is possible without special tools. Good resistance against corrosion and various chemicals. The interior tube remains dry due to a film/aluminium barrier and can be laid in the ground without additional protection.

Connection is possible with push-in connectors (additional self testing) and cutting ring fittings (amplification sleeve recommended).

Areas of application:

- pneumatic measurement and control lines in very wet or moist environments

- air and gas sampling

- aggressive environments (corrosion)

- The interior surface is best suited for air

Tehnični podatki in specifikacije

Min. temperaturno območje [°C] -40
Max. temperaturno območje [°C] 80
Zunanji pokrov Polyethylene
Zračnico Aluminium
I.D. cevi [mm] 6.2
O.D. cevi [mm] 10
Max. obratovalni tlak pri 23 ° C [bar] 28
Min. polmer upogibanja [mm] 32
Dolžina koluta [m] 25
