* slike so simbolične

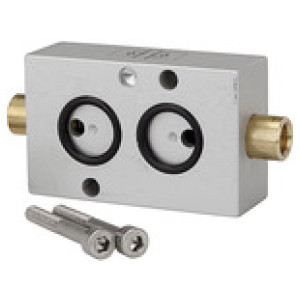

Dušilna ploščica za NAMUR ventil, 5-potni, navojnidriver
SKU: 103666RIE
EAN: 4047322272551
Throttle plate for NAMUR valves, Anodised aluminium, Temp. -20 °C to 70 °C, Working pressure 0.5 - 10 bar, 5-way, Screwdriver
Block-form flow regulator as an intermediate plate between the control valve and actuator acc. to the G 1/4 NAMUR standard.
3/2-way flow regulators:
Independent regulation of the forward and return strokes of a single-acting pneumatic actuator.

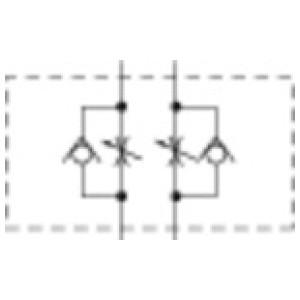

5/2-way flow regulators:
Regulation of the forward and return strokes of a double-acting pneumatic actuator.
Povpraševanje
Ohišje: Aluminium anodised
Srednje: Air, neutral gases (filtered)
Obseg dobave: 1 coding pin, 2 O-rings, 2 fixing screws
Ffunkcija: 5-way
| Šifra | Delovanje | Obseg dobave | Ffunkcija | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 103663RIE | Knurled screw | 1 coding pin, 2 O-rings, 2 fixing screws | 3-way | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 103664RIE | Screwdriver | 2 O-rings, 2 fixing screws | 3-way | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 103666RIE | Screwdriver | 1 coding pin, 2 O-rings, 2 fixing screws | 5-way | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 103665RIE | Knurled screw | 1 coding pin, 2 O-rings, 2 fixing screws | 5-way | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Throttle plate for NAMUR valves, Anodised aluminium, Temp. -20 °C to 70 °C, Working pressure 0.5 - 10 bar, 5-way, Screwdriver
Block-form flow regulator as an intermediate plate between the control valve and actuator acc. to the G 1/4 NAMUR standard.
3/2-way flow regulators:
Independent regulation of the forward and return strokes of a single-acting pneumatic actuator.
5/2-way flow regulators:
Regulation of the forward and return strokes of a double-acting pneumatic actuator.
Tehnični podatki in specifikacije
| Min. delovni tlak [bar] | 0.5 |
| Max. delovni tlak [bar] | 10 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 70 |
| Ohišje | Aluminium anodised |
| DN | 5 |
| Pretok [l/min] | 650 |
| Tesnilo | NBR |
| Srednje | Air, neutral gases (filtered) |
| Obseg dobave | 1 coding pin, 2 O-rings, 2 fixing screws |
| Delovanje | Screwdriver |
| Ffunkcija | 5-way |
