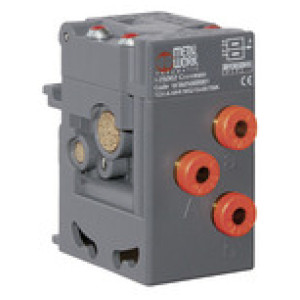

Dvoročni varnostni ventil, brez konzole, hitri priklop
SKU: 106712RIE
EAN: 4047322369435
Two-handed safety valve, without console, Quick-connect plug hose 4 mm, Operating pressure 2.5 - 8 bar, Temp. -10 °C to 60 °C
This pushbutton panel according to EN574 Type III A is comprised of a dual manual control valve with a housing and manifold. The valve only generates an output signal if two synchronised input signals are received within < 0.4 sec. If one input signal is interrupted, the output signal is interrupted as well. An emergency stop valve with a mushroom pushbutton is included. The housing can be screwed to the wall in any position; the valve manifold can optionally be supplied without the housing and with a DIN bar adapter.
Applications: Two-hand safety valve for start-of-cycle control on a pneumatically operated machine.
Obrestno financiranje
- 11,15 € x 24 mesecev
- 21,33 € x 12 mesecev
- 41,73 € x 6 mesecev
- 82,54 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Opis | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 106713RIE | Valve adapter for DIN bar | Čas dobave 3 - 5 dni | 6,45 € |  | |
| 106712RIE | Two-hand safety valve without housing | Čas dobave 3 - 5 dni | 227,71 € | |
Opis
Two-handed safety valve, without console, Quick-connect plug hose 4 mm, Operating pressure 2.5 - 8 bar, Temp. -10 °C to 60 °C
This pushbutton panel according to EN574 Type III A is comprised of a dual manual control valve with a housing and manifold. The valve only generates an output signal if two synchronised input signals are received within < 0.4 sec. If one input signal is interrupted, the output signal is interrupted as well. An emergency stop valve with a mushroom pushbutton is included. The housing can be screwed to the wall in any position; the valve manifold can optionally be supplied without the housing and with a DIN bar adapter.
Applications: Two-hand safety valve for start-of-cycle control on a pneumatically operated machine.
Tehnični podatki in specifikacije
| Min. temperaturno območje [°C] | -10 |
| Min. obratovalni tlak [bar] | 2.5 |
| Max. obratovalni tlak [bar] | 8 |
| Max. temperaturno območje [°C] | 60 |
| Pretok pri 6 bar in Δp 1,0 bar [Nl/min] | 85 |
| Sinhronizacija, max. čas med dvema signaloma [sec.] | 0.4 |
| Srednje | Filtered, unlubricated compressed air |
| Povezava | Push-in fitting for 4 mm pipe |
| Delovanje | Pneumatic |
| Opis | Two-hand safety valve without housing |
