* slike so simbolične

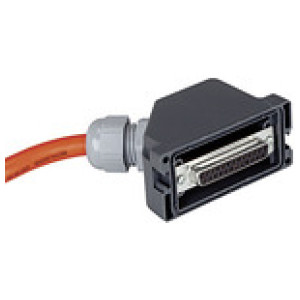

El. priključek (večpolni 25-pol, IP 65), vtičnica IP 67 1 m kabel
SKU: 106700RIE
EAN: 0226960100
Electrical connection (multipole 25-pole, IP 65), Socket IP 67, 25-pole, with 1 m cable
These compact valve terminals, with a maximum flow rate of 800 Nl/min, can be individually adapted to the specific conditions of each application thanks tot he wide range of functions and various input and intermediate plates.
Since each valve terminal is a customer-specific combination of a series of individual elements, the catalogue only lists the available input, intermediate and end plates as well as the different valve discs and the 25-pin multi-pole connectors.
Suitable for filtered, unlubricated or lubricated compressed air. If lubrication is used, it must be continuous.
Monostable (non-latching) version of manual control also available on request.
The operating pressure is based on the installed input plates.
Obrestno financiranje
- 19,19 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Opis | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 106701RIE | IP 67 connector, 25-pin, with 2.5 m cable | Čas dobave: Predvidoma 3 - 5 dni | 70,30 € |  | |
| 106702RIE | IP 67 connector, 25-pin, with 5 m cable | Čas dobave: Predvidoma 3 - 5 dni | 97,44 € | | |
| 106700RIE | IP 67 connector, 25-pin, with 1 m cable | Čas dobave: Predvidoma 3 - 5 dni | 53,17 € | |
Opis
Electrical connection (multipole 25-pole, IP 65), Socket IP 67, 25-pole, with 1 m cable
These compact valve terminals, with a maximum flow rate of 800 Nl/min, can be individually adapted to the specific conditions of each application thanks tot he wide range of functions and various input and intermediate plates.
Since each valve terminal is a customer-specific combination of a series of individual elements, the catalogue only lists the available input, intermediate and end plates as well as the different valve discs and the 25-pin multi-pole connectors.
Suitable for filtered, unlubricated or lubricated compressed air. If lubrication is used, it must be continuous.
Monostable (non-latching) version of manual control also available on request.
The operating pressure is based on the installed input plates.
Tehnični podatki in specifikacije
| Min. temperaturno območje [°C] | -10 |
| Max. temperaturno območje [°C] | 60 |
| Vhodna moč | 0.6 W per pilot |
| Ročno upravljanje | latching |
| Poskusno | Max. 16 (e.g. 16 spring return valves) |
| IP zaščita | IP 65 |
| Opis | IP 67 connector, 25-pin, with 1 m cable |
