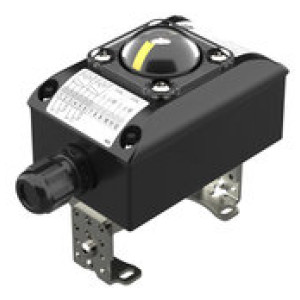

End position feedback aluminium, inductive sensor, 10-30V DC
SKU: 117192RIE
EAN: 4047322719933
End position feedback aluminium, inductive sensor PNP (NO), 10-30V DC, 0-200 mA, ambient temp. -25 °C to 80 °C
Robust and compact end position feedback with aluminium housing.
- Actuator hole spacings 80x30mm or 130x30mm
- Height-adjustable assembly bridge for actuator shaft heights 20/30/40/50mm
- 3D position indicator also visible from a distance
- Easy-to-adjust, self-locking trip cam
Povpraševanje
Kabelska uvodnica: M20x1.5
Nominalna preklopna zmogljivost: 0-200mA
Ohišje: Aluminium
Opis: IS5001 - inductive sensor quadruple
Preklopna funkcija: PNP (NO)
Različica: with inductive sensor
Območje napetosti: 10-30 V DC
| Šifra | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|
| 117192RIE | Ni na zalogi | ? | Povpraševanje |  |
Opis
End position feedback aluminium, inductive sensor PNP (NO), 10-30V DC, 0-200 mA, ambient temp. -25 °C to 80 °C
Robust and compact end position feedback with aluminium housing.
- Actuator hole spacings 80x30mm or 130x30mm
- Height-adjustable assembly bridge for actuator shaft heights 20/30/40/50mm
- 3D position indicator also visible from a distance
- Easy-to-adjust, self-locking trip cam
Tehnični podatki in specifikacije
| Območje napetosti | 10-30 V DC |
| Ohišje | Aluminium |
| Preklopna funkcija | PNP (NO) |
| IP zaščita | IP 66/67, acc. to DIN EN 60529 |
| Kabelska uvodnica | M20x1.5 |
| Nominalna preklopna zmogljivost | 0-200mA |
| Opis | IS5001 - inductive sensor quadruple |
| Različica | with inductive sensor |
| Min. sobna temperatura [°C] | -25 |
| Max. sobna temperatura [°C] | 80 |
