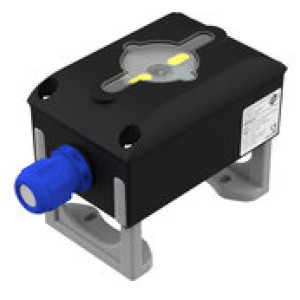

End position feedback PA, inductive sensor, ATEX, 8,2V DC
SKU: 117259RIE
EAN: 4047322719971
End position feedback PA glass fiber reinforced, inductive sensor ATEX, NAMUR (NC), 8,2V DC, 1-3 mA, ambient temp. -25°C to 70°C
Robust and compact end position feedback with plastic housing.
- Actuator hole spacings 80x30mm or 130x30mm
- Height-adjustable assembly bridge for actuator shaft heights 20/30/40/50mm
- 3D position indicator also visible from a distance
- Easy-to-adjust, self-locking trip cam
Povpraševanje
Kabelska uvodnica: M20x1.5
Nominalna preklopna zmogljivost: <= 1.0mA / >=2.1mA
Opis: NJ2 -inductive sensor quadruple
Preklopna funkcija: Inductive (NAMUR NO/NC)
Različica: with inductive sensor ATEX type
Območje napetosti: 8.2V DC
| Šifra | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|
| 117259RIE | Ni na zalogi | ? | Povpraševanje |  |
Opis
End position feedback PA glass fiber reinforced, inductive sensor ATEX, NAMUR (NC), 8,2V DC, 1-3 mA, ambient temp. -25°C to 70°C
Robust and compact end position feedback with plastic housing.
- Actuator hole spacings 80x30mm or 130x30mm
- Height-adjustable assembly bridge for actuator shaft heights 20/30/40/50mm
- 3D position indicator also visible from a distance
- Easy-to-adjust, self-locking trip cam
Tehnični podatki in specifikacije
| Območje napetosti | 8.2V DC |
| Ohišje | PA |
| Preklopna funkcija | Inductive (NAMUR NO/NC) |
| IP zaščita | IP 67, acc. to DIN EN 60529 |
| Kabelska uvodnica | M20x1.5 |
| Nominalna preklopna zmogljivost | <= 1.0mA / >=2.1mA |
| Opis | NJ2 -inductive sensor quadruple |
| Različica | with inductive sensor ATEX type |
| Min. sobna temperatura [°C] | -25 |
| Max. sobna temperatura [°C] | 70 |
