Enos. ventil Blue serija, Vtični prik., cev Ø 4
SKU: 109972RIE
EAN: 4047322200493

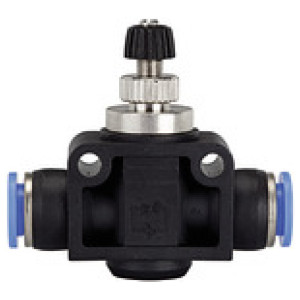

Throttle check valve »Blue Series«, Plug connector, Straight, for hose exterior Ø 4 mm, pmax short term 15 barPush-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Čas dobave: Predvidoma 3 - 5 dni
6,70 €
| Šifra | Za cevi O.D. [mm] | Min. L2 [mm] | Max. L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 109974RIE | 8 | 44.4 | 51.5 | 52.0 | Čas dobave: Predvidoma 3 - 5 dni | 9,74 € |  | |
| 109975RIE | 10 | 48.0 | 55.0 | 62.3 | Čas dobave: Predvidoma 3 - 5 dni | 15,40 € | | |
| 109973RIE | 6 | 41.0 | 47.2 | 47.1 | Na zalogi | 8,13 € | | |
| 109976RIE | 12 | 52.3 | 57.7 | 73.6 | Čas dobave: Predvidoma 3 - 5 dni | 20,07 € | | |
| 109972RIE | 4 | 28.3 | 30.8 | 39.5 | Čas dobave: Predvidoma 3 - 5 dni | 6,70 € | |
Opis
Push-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Tehnični podatki in specifikacije
| Serija | Blue series |
| Max. working pressure short term [bar] | 15 |
| Min. delovni tlak [bar] | -0.95 |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 80 |
| Min. temperaturno območje [°C] | -20 |
| Tesnilo | NBR |
| Srednje | Compressed air, neutral and safe gases and liquids |
| Priporočena cev | PU or PA (nylon) |
| Rokav | Plastic |
| Za cevi O.D. [mm] | 4 |
| L1 [mm] | 39.5 |
| Min. L2 [mm] | 28.3 |
| Max. L2 [mm] | 30.8 |
| Material | Plastic and nickel-plated brass |
